14821F0GJSY03103KA
148 2 1 F 0 GJ S Y03 BO 10K 10%Manufacturer: Vishay Sfernice
Categories: Rotary Potentiometers, Rheostats
Quality Control: Learn More
10k Ohm 2 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 0.5W, 1/2W Solder Lug
Additional Information
Series: 148RoHS Status: RoHS CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 10k |
| Power (Watts) | 0.5W, 1/2W |
| Tolerance | ±10% |
| Features | - |
| Packaging | Bulk |
| Temperature Coefficient | ±150ppm/°C |
| Adjustment Type | User Defined |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Bushing Thread | 1/4-32 |
| Actuator Length | 0.875"" (22.23mm) |
| Actuator Type | Slotted |
| Built in Switch | Rotary, SPST |
| Actuator Diameter | 0.250"" (6.35mm) |
| Resistive Material | Cermet |
| Taper | Linear |
| Rotation | 300° |
| Number of Gangs | 2 |
| Number of Turns | 1.0 |
Request a Quote
Clients Also Buy
14810A0BHSX10102KA
POT 1K OHM 1/2W PLASTIC LINEAR
14810A0BHSX10103KA
POT 10K OHM 1/2W PLASTIC LINEAR

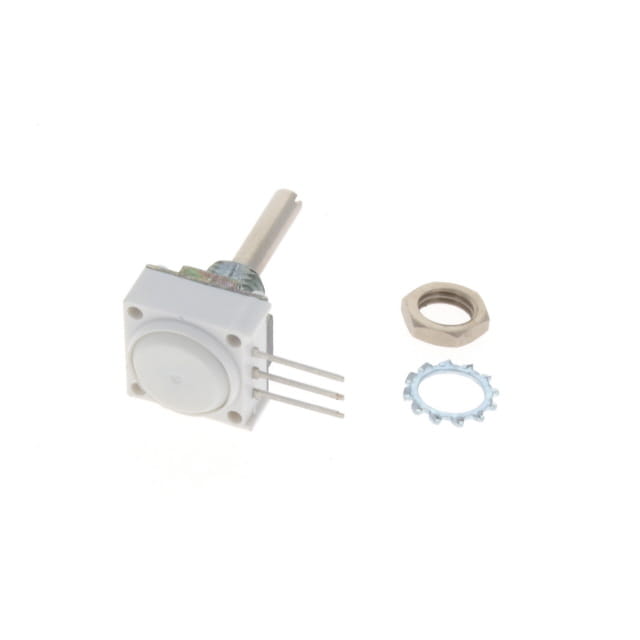

14810A0BHSX10502KA
