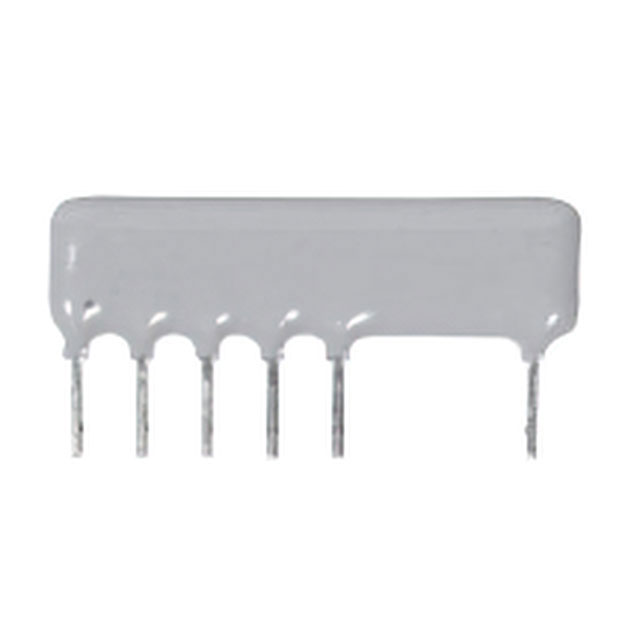

CNS471A5
RES THIN FILM SILManufacturer: Vishay Sfernice
Categories: Resistor Networks, Arrays
Quality Control: Learn More
Vishay Sfernice CNS 471 series decade resistor network, part number CNS471A5, offers a compact 8-SIP package with 6 leads. This thin film resistor array features five individual resistors with decade values ranging from 1k Ohm to 9M Ohm, each rated at 100mW power dissipation per element. It boasts a tight tolerance of ±0.1% and a temperature coefficient of 25ppm/°C, with resistor ratio matching at ±0.05% and a ratio drift of 2.5ppm/°C. The CNS471A5 is engineered for applications such as voltage dividers requiring matched TCR performance. Its 0.830" L x 0.100" W (21.08mm x 2.54mm) dimensions and through-hole mounting facilitate integration into various electronic designs. Operating temperature range is 0°C to 70°C.
Additional Information
Series: CNS 471RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 1k, 9k, 90k, 900k, 9M |
| Tolerance | ±0.1% |
| Packaging | Bulk |
| Power Per Element | 100mW |
| Circuit Type | Decade Resistor |
| Number of Pins | 6 |
| Package / Case | 8-SIP, 6 Leads |
| Temperature Coefficient | 25ppm/°C |
| Size / Dimension | 0.830"" L x 0.100"" W (21.08mm x 2.54mm) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 70°C |
| Applications | Voltage Divider (TCR Matched) |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.261"" (6.62mm) |
| Grade | - |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | 2.5ppm/°C |
| Number of Resistors | 5 |
| Qualification | - |
