PZHT0402-0R00GPT
SFERNICE THIN FILMSManufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
The Vishay Sfernice PZHT0402-0R00GPT is a 0 Ohm thin film jumper chip resistor in the 0402 (1005 Metric) package. This surface mount component offers a robust solution with an operating temperature range of -55°C to 215°C. Its construction utilizes thin film technology, providing reliable performance in demanding applications. The component dimensions are 0.060 inches (1.52mm) in length and 0.033 inches (0.85mm) in width, with a maximum seated height of 0.025 inches (0.63mm). The PZHT series jumper is supplied on tape and reel (TR) for automated assembly processes. This component is commonly utilized in automotive, industrial, and telecommunications equipment.
Additional Information
Series: PZHTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | - |
| Tolerance | Jumper |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Temperature Coefficient | - |
| Size / Dimension | 0.060"" L x 0.033"" W (1.52mm x 0.85mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 215°C |
| Ratings | - |
| Number of Terminations | 2 |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.025"" (0.63mm) |
| Failure Rate | - |
| Resistance | 0 Ohms |
Request a Quote
Clients Also Buy

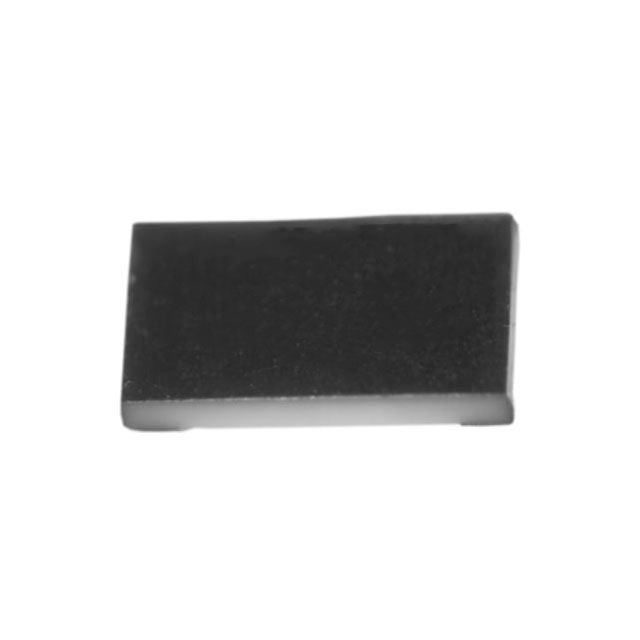

PZHT0603-0R00GT
