PVHT1206E1104BGTC
PVHT 1206 1104 B G TR500Manufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Vishay Sfernice PVHT series chip resistor, part number PVHT1206E1104BGTC. This 1.1 MO thin film surface mount resistor features a ±0.1% tolerance and a 0.165W power rating. The 1206 (3216 Metric) package offers a precise 0.120" x 0.063" (3.06mm x 1.60mm) footprint with a maximum seated height of 0.018" (0.45mm). Operating across a wide temperature range of -55°C to 250°C, this component exhibits a temperature coefficient of ±25ppm/°C. Enhanced with anti-sulfur properties, it is designed for reliability in demanding environments, commonly found in industrial and automotive applications. Supplied in a Tape & Reel (TR) package for automated assembly.
Additional Information
Series: PVHTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.165W |
| Tolerance | ±0.1% |
| Features | Anti-Sulfur |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Temperature Coefficient | ±25ppm/°C |
| Size / Dimension | 0.120"" L x 0.063"" W (3.06mm x 1.60mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 250°C |
| Ratings | - |
| Number of Terminations | 2 |
| Supplier Device Package | 1206 |
| Height - Seated (Max) | 0.018"" (0.45mm) |
| Failure Rate | - |
| Resistance | 1.1 MOhms |
Request a Quote
Clients Also Buy

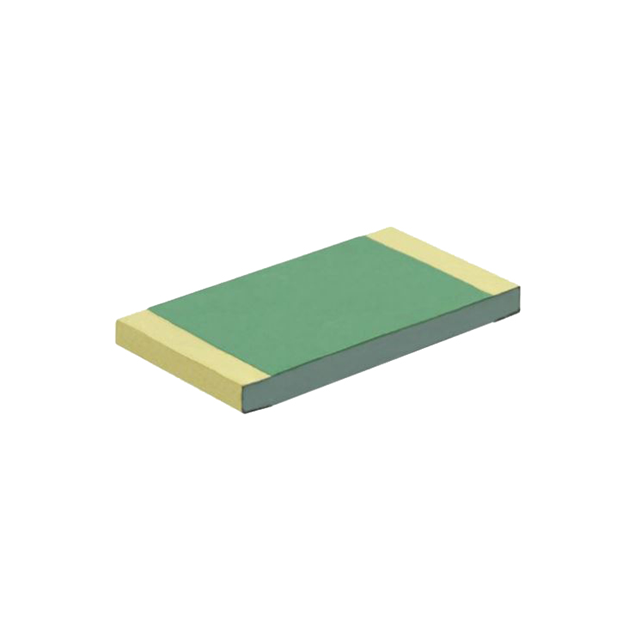

PVHT0805Z8001FGT
