PHT2010E8250BGW
PHT 2010 E 8250 B G WP E4Manufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More

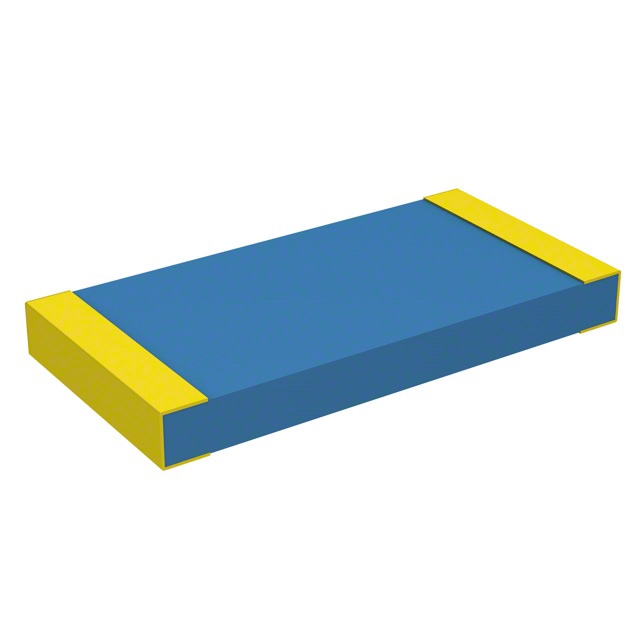

The Vishay Sfernice PHT Series PHT2010E8250BGW is a high-precision 825 Ohm surface-mount chip resistor. Engineered with anti-sulfur thin-film technology, this component offers excellent stability and reliability across a broad operating temperature range of -55°C to 215°C. It features a tight tolerance of ±0.1% and a low temperature coefficient of 30ppm/°C, ensuring consistent performance in demanding applications. The 2010 (5025 Metric) package provides a robust footprint with dimensions of 0.200" L x 0.100" W (5.08mm x 2.54mm) and a seated height of 0.018" (0.45mm). With a power rating of 0.2W (1/5W), this resistor is suitable for use in various industries including automotive, industrial control, and telecommunications where precise resistance values and environmental resilience are critical.
Additional Information
Series: PHTRoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.2W, 1/5W |
| Tolerance | ±0.1% |
| Features | Anti-Sulfur |
| Packaging | Bulk |
| Package / Case | 2010 (5025 Metric) |
| Temperature Coefficient | 30ppm/°C |
| Size / Dimension | 0.200"" L x 0.100"" W (5.08mm x 2.54mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 215°C |
| Ratings | - |
| Number of Terminations | 2 |
| Supplier Device Package | 2010 |
| Height - Seated (Max) | 0.018"" (0.45mm) |
| Failure Rate | - |
| Resistance | 825 Ohms |
Request a Quote
