PHT1206Y20R0BGW
PHT 1206 Y 20R0 B G WPManufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Vishay Sfernice PHT series PHT1206Y20R0BGW is a precision thin-film chip resistor. This surface-mount component offers a resistance value of 20 Ohms with a tight tolerance of ±0.1% and a temperature coefficient of ±15ppm/°C. It is rated for 0.1W (1/10W) power dissipation and operates across a wide temperature range of -55°C to 215°C. The 1206 (3216 Metric) package measures 0.120" L x 0.063" W (3.06mm x 1.60mm) with a seated height of 0.018" (0.45mm). Key features include anti-sulfur construction, making it suitable for applications in harsh environments. This component is commonly found in automotive, industrial, and telecommunications equipment requiring high accuracy and reliability.
Additional Information
Series: PHTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.1W, 1/10W |
| Tolerance | ±0.1% |
| Features | Anti-Sulfur |
| Packaging | Tray |
| Package / Case | 1206 (3216 Metric) |
| Temperature Coefficient | ±15ppm/°C |
| Size / Dimension | 0.120"" L x 0.063"" W (3.06mm x 1.60mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 215°C |
| Ratings | - |
| Number of Terminations | 2 |
| Supplier Device Package | 1206 |
| Height - Seated (Max) | 0.018"" (0.45mm) |
| Failure Rate | - |
| Resistance | 20 Ohms |
Request a Quote
Clients Also Buy

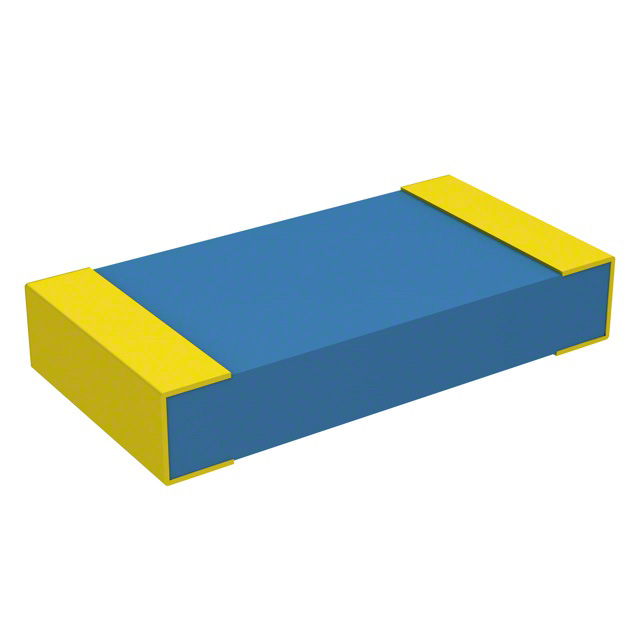

PHT0402E1000BGPC
