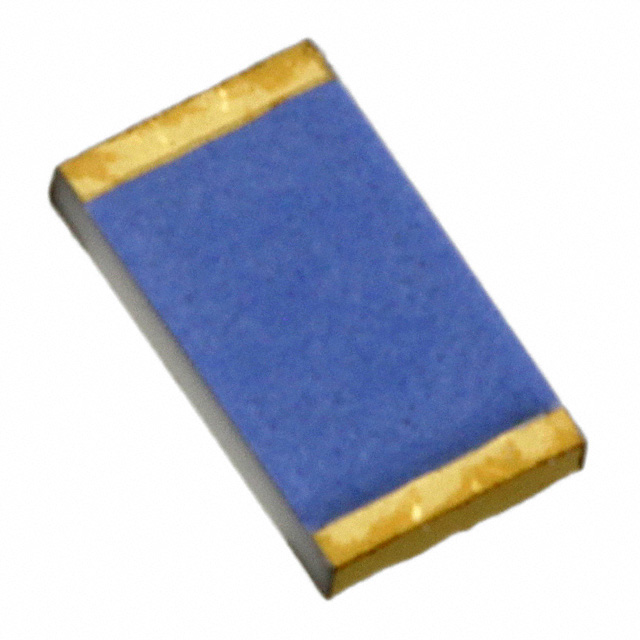

PHT1206Y1001BGT
RES SMD 1K OHM 0.1% 1/10W 1206Manufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Vishay Sfernice PHT series thin film chip resistor, part number PHT1206Y1001BGT. This 1 kOhm resistor features a tight ±0.1% tolerance and a low ±15ppm/°C temperature coefficient, ensuring precise performance across its wide operating temperature range of -55°C to 215°C. The 0.1W power rating is delivered in a standard 1206 (3216 Metric) surface-mount package, measuring 0.120" x 0.063" (3.06mm x 1.60mm) with a seated height of 0.018" (0.45mm). Designed with anti-sulfur properties, this component is suitable for applications requiring enhanced reliability in sulfur-rich environments, commonly found in automotive and industrial control systems. The component is supplied on tape and reel for efficient automated assembly.
Additional Information
Series: PHTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.1W, 1/10W |
| Tolerance | ±0.1% |
| Features | Anti-Sulfur |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Temperature Coefficient | ±15ppm/°C |
| Size / Dimension | 0.120"" L x 0.063"" W (3.06mm x 1.60mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 215°C |
| Number of Terminations | 2 |
| Supplier Device Package | 1206 |
| Height - Seated (Max) | 0.018"" (0.45mm) |
| Failure Rate | - |
| Resistance | 1 kOhms |
