PHT0603Y10R0BGT
PHT 0603 Y 10R0 B G TRManufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More

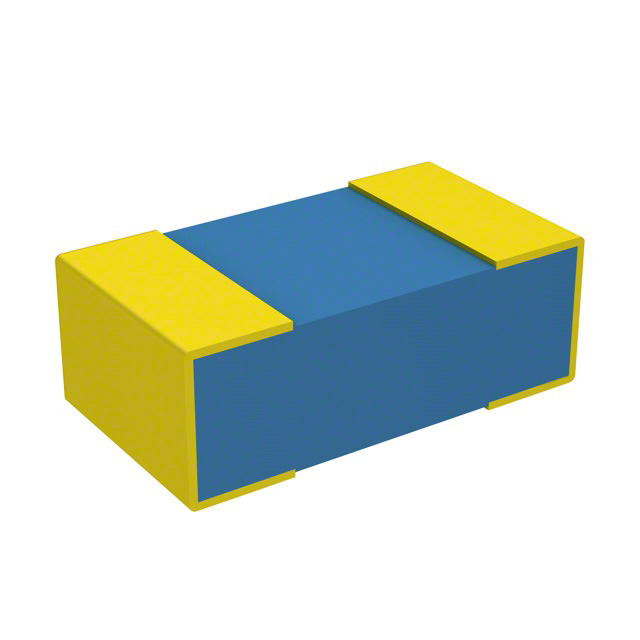

Vishay Sfernice PHT series 0603 anti-sulfur thin film chip resistor, PHT0603Y10R0BGT, offers a precise 10 Ohms resistance with a tight ±0.1% tolerance. This surface-mount component operates with a power rating of 0.0375W and a low temperature coefficient of ±30ppm/°C across an extended operating temperature range of -55°C to 215°C. The 0603 (1608 Metric) package measures 0.060 inches by 0.033 inches, with a seated height of 0.018 inches. Its thin film construction and anti-sulfur feature make it suitable for demanding applications in industrial control, telecommunications, and automotive electronics where reliability and stability are paramount. The component is supplied in Tape & Reel packaging.
Additional Information
Series: PHTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.0375W |
| Tolerance | ±0.1% |
| Features | Anti-Sulfur |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Temperature Coefficient | ±30ppm/°C |
| Size / Dimension | 0.060"" L x 0.033"" W (1.52mm x 0.85mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 215°C |
| Ratings | - |
| Number of Terminations | 2 |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.018"" (0.45mm) |
| Failure Rate | - |
| Resistance | 10 Ohms |
