PEP0805Y1001BNTA
PEP0805 10PPM/C 1K 0.1% N TAManufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Vishay Sfernice PEP series chip resistor, part number PEP0805Y1001BNTA. This 0805 (2012 metric) surface mount resistor offers a nominal resistance of 1 kOhms with a tight tolerance of ±0.1%. Featuring a thin film composition, it provides a stable temperature coefficient of ±10ppm/°C, making it suitable for applications requiring precise resistance values across a wide operating temperature range of -55°C to 155°C. The component is rated for 0.5W (1/2W) power dissipation and includes anti-sulfur capabilities, enhancing reliability in harsh environments. Its compact dimensions of 0.075" L x 0.050" W (1.91mm x 1.27mm) and seated height of 0.025" (0.63mm) are ideal for dense board designs. Supplied in Tape & Reel packaging, this Vishay Sfernice component finds application in automotive, industrial, and telecommunications sectors.
Additional Information
Series: PEPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.5W, 1/2W |
| Tolerance | ±0.1% |
| Features | Anti-Sulfur |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Temperature Coefficient | ±10ppm/°C |
| Size / Dimension | 0.075"" L x 0.050"" W (1.91mm x 1.27mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 155°C |
| Ratings | - |
| Number of Terminations | 2 |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.025"" (0.63mm) |
| Failure Rate | - |
| Resistance | 1 kOhms |
Request a Quote
Clients Also Buy

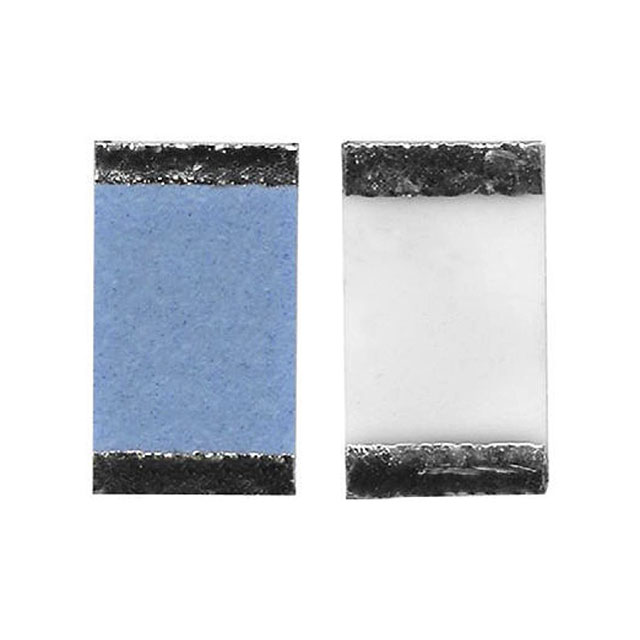

PEP0402Y1001BGTA
