P2TC0603D2002LNTA
P2TC0603 2PPM/C 20K 0,01% N TAManufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More

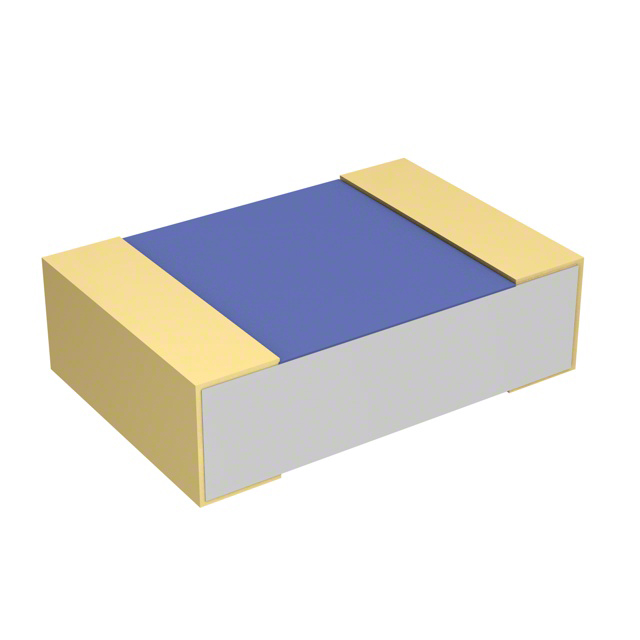

Vishay Sfernice P2TC series, part number P2TC0603D2002LNTA, is a thin film chip resistor designed for high-precision applications. This surface-mount component offers a resistance value of 20 kOhms with an extremely tight tolerance of ±0.01%. The P2TC0603 features a low temperature coefficient of ±2ppm/°C, ensuring stable performance across a wide operating temperature range of -55°C to 155°C. With a power rating of 0.125W (1/8W) and a robust anti-sulfur construction, this resistor is suitable for demanding environments. The 0603 (1608 Metric) package measures 0.060" L x 0.033" W, with a seated height of 0.025". This component is commonly found in instrumentation, medical devices, and industrial control systems where accuracy and reliability are paramount. Supplied on tape and reel (TR).
Additional Information
Series: P2TCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.125W, 1/8W |
| Tolerance | ±0.01% |
| Features | Anti-Sulfur |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Temperature Coefficient | ±2ppm/°C |
| Size / Dimension | 0.060"" L x 0.033"" W (1.52mm x 0.85mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 155°C |
| Ratings | - |
| Number of Terminations | 2 |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.025"" (0.63mm) |
| Failure Rate | - |
| Resistance | 20 kOhms |
