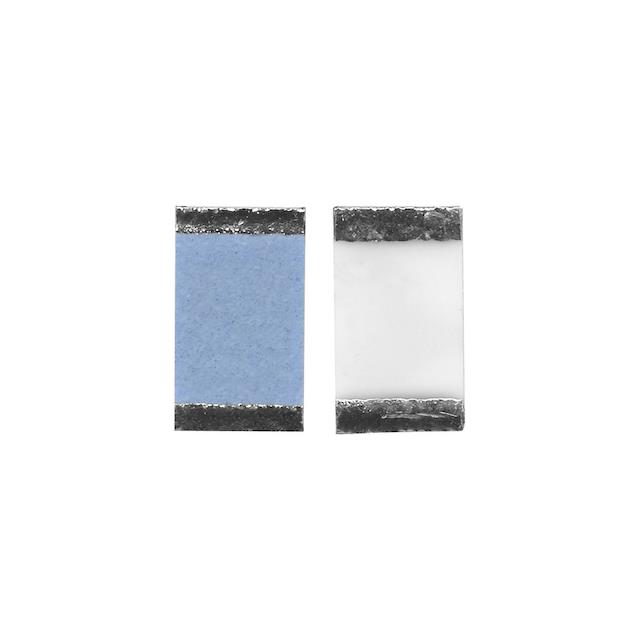

P1206H10R0BNT
RES SMD THIN FILM 1206 10 OHMManufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Vishay Sfernice P Series thin film chip resistor, part number P1206H10R0BNT. This surface-mount component offers a precise 10 Ohm resistance with a tight ±0.1% tolerance and a temperature coefficient of ±50ppm/°C. Rated for 0.333W (1/3W) power dissipation, it features an anti-sulfur construction, enhancing reliability in environments prone to sulfur contamination. The 1206 (3216 Metric) package measures 0.120 inches by 0.063 inches with a maximum seated height of 0.025 inches. Operating across a wide temperature range of -55°C to 155°C, this device is suitable for demanding applications in automotive, industrial, and telecommunications sectors. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: PRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.333W, 1/3W |
| Tolerance | ±0.1% |
| Features | Anti-Sulfur |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Temperature Coefficient | ±50ppm/°C |
| Size / Dimension | 0.120"" L x 0.063"" W (3.06mm x 1.60mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 155°C |
| Ratings | - |
| Number of Terminations | 2 |
| Supplier Device Package | 1206 |
| Height - Seated (Max) | 0.025"" (0.63mm) |
| Failure Rate | - |
| Resistance | 10 Ohms |
