L0603MR100GNW
L 0603 M R100 G N WPManufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More

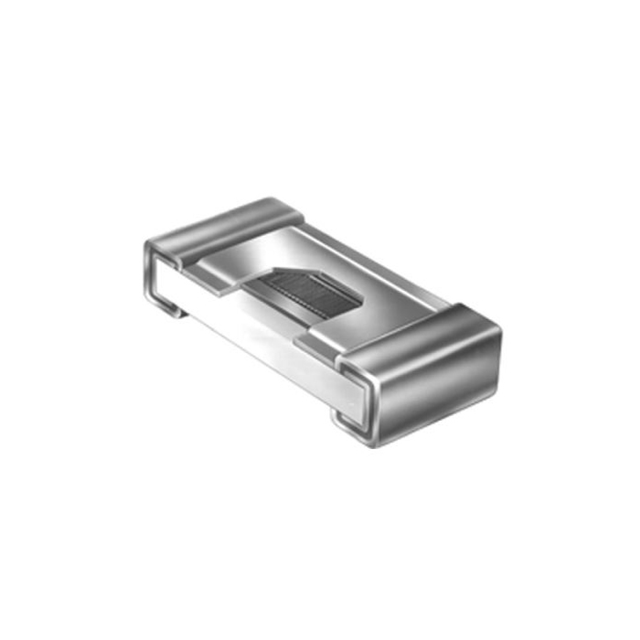

Vishay Sfernice L Series, part number L0603MR100GNW, is a non-inductive thin film chip resistor. This surface mount component offers a resistance of 100 mOhms with a tight tolerance of ±2%. Rated for 0.125W (1/8W) power dissipation, it features a 0603 (1608 Metric) package size measuring 0.060" L x 0.033" W (1.52mm x 0.85mm). The operating temperature range is -55°C to 155°C, with a temperature coefficient of ±300ppm/°C. Designed for demanding applications, it is Automotive AEC-Q200 qualified and exhibits moisture resistance. This component is suitable for use in automotive and industrial electronics.
Additional Information
Series: LRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.125W, 1/8W |
| Tolerance | ±2% |
| Features | Automotive AEC-Q200, Moisture Resistant, Non-Inductive |
| Packaging | Tray |
| Package / Case | 0603 (1608 Metric) |
| Temperature Coefficient | ±300ppm/°C |
| Size / Dimension | 0.060"" L x 0.033"" W (1.52mm x 0.85mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 155°C |
| Ratings | - |
| Number of Terminations | 2 |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.025"" (0.63mm) |
| Failure Rate | - |
| Resistance | 100 MOhms |
