CHPHT0603K2150FGT
RES SMD 215 OHM 1% 0.0125W 0603Manufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Vishay Sfernice CHPHT series chip resistor, part number CHPHT0603K2150FGT, is a 0603 (1608 Metric) surface-mount thick film resistor with a resistance value of 215 Ohms and a tolerance of ±1%. This component is rated for 0.0125W power dissipation and features a low moisture sensitivity. It operates across a wide temperature range from -55°C to 230°C with a temperature coefficient of ±100ppm/°C. The package dimensions are 0.063" L x 0.035" W (1.60mm x 0.90mm), with a maximum seated height of 0.020" (0.51mm). Designed with two terminations, this resistor is supplied on tape and reel. Applications include automotive, industrial, and telecommunications equipment.
Additional Information
Series: CHPHTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.0125W |
| Tolerance | ±1% |
| Features | Moisture Resistant |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.063"" L x 0.035"" W (1.60mm x 0.90mm) |
| Composition | Thick Film |
| Operating Temperature | -55°C ~ 230°C |
| Number of Terminations | 2 |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.020"" (0.51mm) |
| Failure Rate | - |
| Resistance | 215 Ohms |
Request a Quote
Clients Also Buy

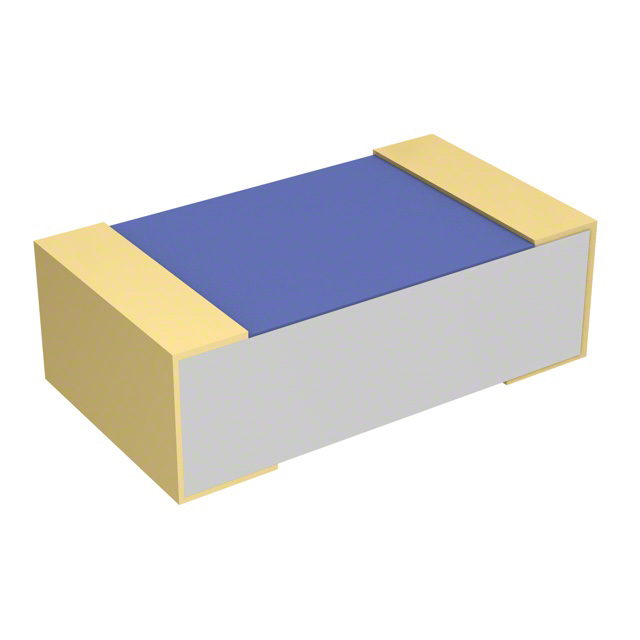

CHPHT0603K1000FGT
