CHP2010K1802JBTA
CHP 2010 100PPM 18K 5% B TR100Manufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More

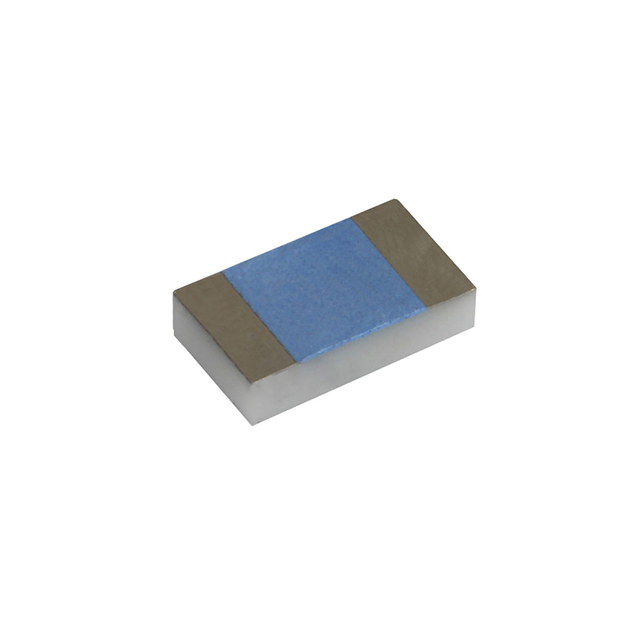

Vishay Sfernice CHP Series 2010 (5025 Metric) thick film chip resistor, part number CHP2010K1802JBTA. This component offers a resistance of 18 kOhms with a ±5% tolerance and a power rating of 1W. It features a tight temperature coefficient of ±100ppm/°C and is designed for operation across an extended temperature range of -55°C to 155°C. The 2010 package size (5.03mm x 2.64mm x 0.63mm) is suitable for surface mounting. Certified to Automotive AEC-Q200 standards and exhibiting moisture resistance, this device is commonly utilized in automotive, industrial, and high-reliability applications. Supplied in Tape & Reel packaging.
Additional Information
Series: CHPRoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 1W |
| Tolerance | ±5% |
| Features | Automotive AEC-Q200, Moisture Resistant |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2010 (5025 Metric) |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.198"" L x 0.104"" W (5.03mm x 2.64mm) |
| Composition | Thick Film |
| Operating Temperature | -55°C ~ 155°C |
| Ratings | - |
| Number of Terminations | 2 |
| Supplier Device Package | 2010 |
| Height - Seated (Max) | 0.025"" (0.63mm) |
| Failure Rate | - |
| Resistance | 18 kOhms |
