CH0402-120RGNT
CH 0402 120U 2% N TR E2Manufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More

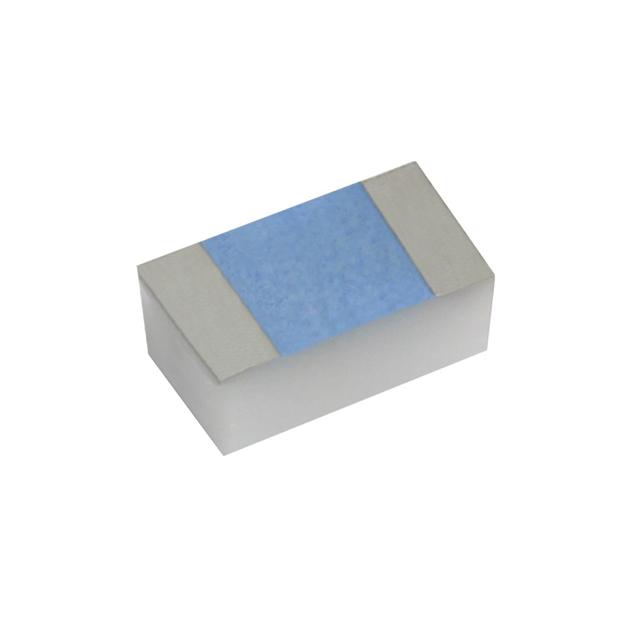

Vishay Sfernice CH series CH0402-120RGNT is a 0402 (1005 Metric) surface-mount chip resistor featuring thin-film construction. This component offers a resistance value of 120 Ohms with a tight ±2% tolerance. It is rated for 0.05W (1/20W) power dissipation and operates within a temperature range of -55°C to 155°C. The resistor exhibits a temperature coefficient of ±100ppm/°C. Designed for RF and high-frequency applications, its dimensions are 0.039" L x 0.024" W (1.00mm x 0.60mm) with a seated height maximum of 0.025" (0.63mm). This device is suitable for use in telecommunications, industrial control, and medical equipment.
Additional Information
Series: CHRoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.05W, 1/20W |
| Tolerance | ±2% |
| Features | RF, High Frequency |
| Packaging | Bulk |
| Package / Case | 0402 (1005 Metric) |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.039"" L x 0.024"" W (1.00mm x 0.60mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 155°C |
| Ratings | - |
| Number of Terminations | 2 |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.025"" (0.63mm) |
| Failure Rate | - |
| Resistance | 120 Ohms |
Request a Quote
