CH02016-100RGPT
RES CH 02016 THIN FILMManufacturer: Vishay Sfernice
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More

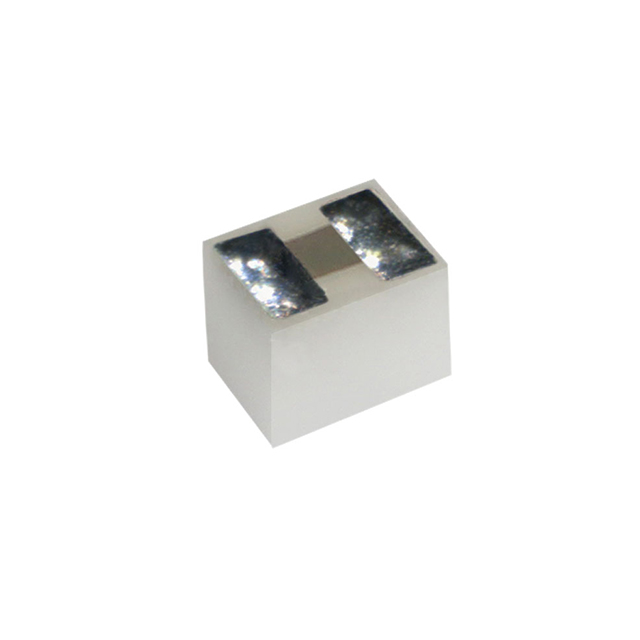

Vishay Sfernice CH Series 02016 (0504 Metric) thin film chip resistor, part number CH02016-100RGPT. This surface-mount component offers a resistance value of 100 Ohms with a ±2% tolerance and a power rating of 0.03W (1/32W). Designed for RF and high-frequency applications, it features a thin film composition and operates across a temperature range of -55°C to 155°C. The device has a temperature coefficient of ±100ppm/°C. Its compact dimensions are 0.019" L x 0.015" W (0.48mm x 0.39mm), with a seated height of 0.022" (0.55mm). It is supplied in a 02016 package with 2 terminations and is available on tape and reel. This component is suitable for use in telecommunications and industrial control systems.
Additional Information
Series: CHRoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.03W, 1/32W |
| Tolerance | ±2% |
| Features | RF, High Frequency |
| Packaging | Tape & Reel (TR) |
| Package / Case | 02016 (0504 Metric) |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.019"" L x 0.015"" W (0.48mm x 0.39mm) |
| Composition | Thin Film |
| Operating Temperature | -55°C ~ 155°C |
| Number of Terminations | 2 |
| Supplier Device Package | 02016 |
| Height - Seated (Max) | 0.022"" (0.55mm) |
| Resistance | 100 Ohms |
