WCR382504701JB
WCR 38X250 470U 5% BO12Manufacturer: Vishay Sfernice
Categories: Chassis Mount Resistors
Quality Control: Learn More
Vishay Sfernice WCR Series WCR382504701JB is a 2000W wirewound resistor with a resistance value of 4.7 kOhms and a tolerance of ±5%. This chassis mount component features a silicon, vitreous enamel coating for robust thermal management. Designed for demanding applications, it operates within a temperature range of -55°C to 120°C with a temperature coefficient of ±100ppm/°C. The resistor has solder lug leads and is packaged in a box for convenient handling and integration. Typical industries utilizing this type of component include industrial automation, power supplies, and motor control. The dimensions are 1.693 inches in diameter by 9.843 inches in length (43.00mm x 250.00mm).
Additional Information
Series: WCRRoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 2000W |
| Tolerance | ±5% |
| Lead Style | Solder Lugs |
| Features | - |
| Packaging | Box |
| Package / Case | Radial, Tubular |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 1.693"" Dia x 9.843"" L (43.00mm x 250.00mm) |
| Composition | Wirewound |
| Operating Temperature | -55°C ~ 120°C |
| Mounting Feature | Brackets (not included) |
| Coating, Housing Type | Silicon, Vitreous Enamel Coated |
| Height - Seated (Max) | - |
| Failure Rate | - |
| Grade | - |
| Resistance | 4.7 kOhms |
| Qualification | - |
Request a Quote
Clients Also Buy

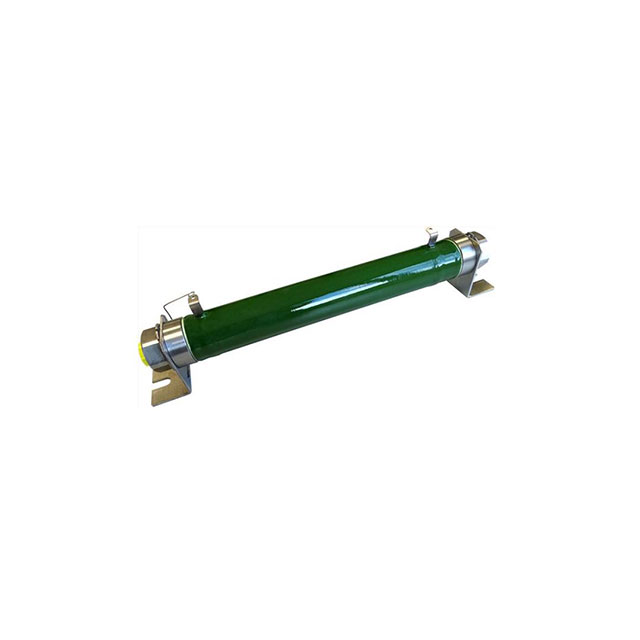

WCR302504701JB
