DRTOP100V3R33R3JB
DRTOP 100 3U3 5% 3U3 5% V BO10Manufacturer: Vishay Sfernice
Categories: Chassis Mount Resistors
Quality Control: Learn More

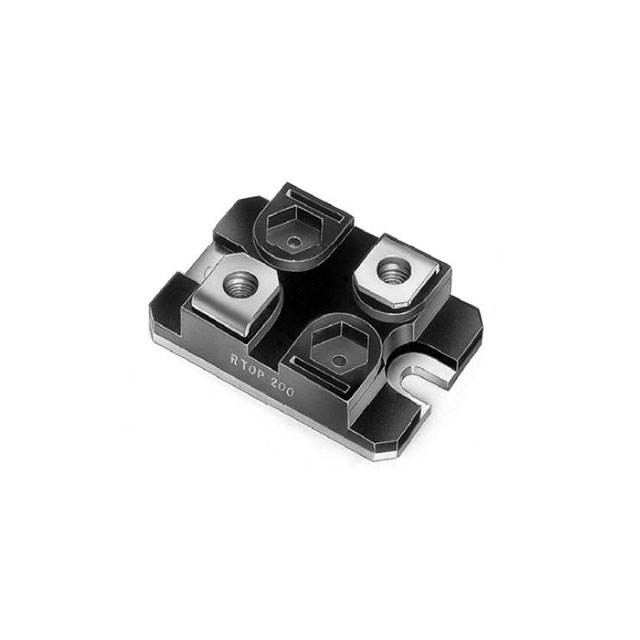

3.3 Ohms ±5% 100W Thick Film Chassis Mount Resistor
Additional Information
Series: RTOPRoHS Status: RoHS CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 100W |
| Tolerance | ±5% |
| Lead Style | M4 Threaded |
| Features | Non-Inductive |
| Packaging | Box |
| Package / Case | SOT-227-4 |
| Temperature Coefficient | ±150ppm/°C |
| Size / Dimension | 1.496"" L x 0.984"" W (38.00mm x 25.00mm) |
| Composition | Thick Film |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Feature | Flanges |
| Coating, Housing Type | Aluminum |
| Height - Seated (Max) | 0.508"" (12.90mm) |
| Failure Rate | - |
| Resistance | 3.3 Ohms |
