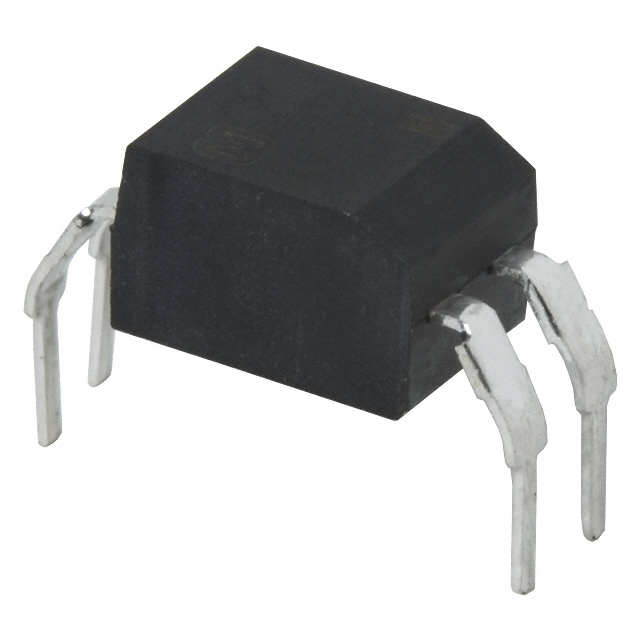

VOT8024AG
PHOTOTRIAC 800V ZC DIP4 400MILManufacturer: Vishay Semiconductor Opto Division
Categories: Triac, SCR Output Optoisolators
Quality Control: Learn More
Optoisolator Triac Output 5300Vrms 1 Channel 4-DIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 4-DIP (0.400"", 10.16mm) |
| Output Type | Triac |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 110°C |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Voltage - Isolation | 5300Vrms |
| Approval Agency | CQC, cUL, UL, VDE |
| Current - Hold (Ih) | 400µA (Typ) |
| Turn On Time | - |
| Supplier Device Package | 4-DIP |
| Zero Crossing Circuit | Yes |
| Static dV/dt (Min) | 1kV/µs |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Number of Channels | 1 |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Voltage - Off State | 800 V |
| Current - DC Forward (If) (Max) | 50 mA |
