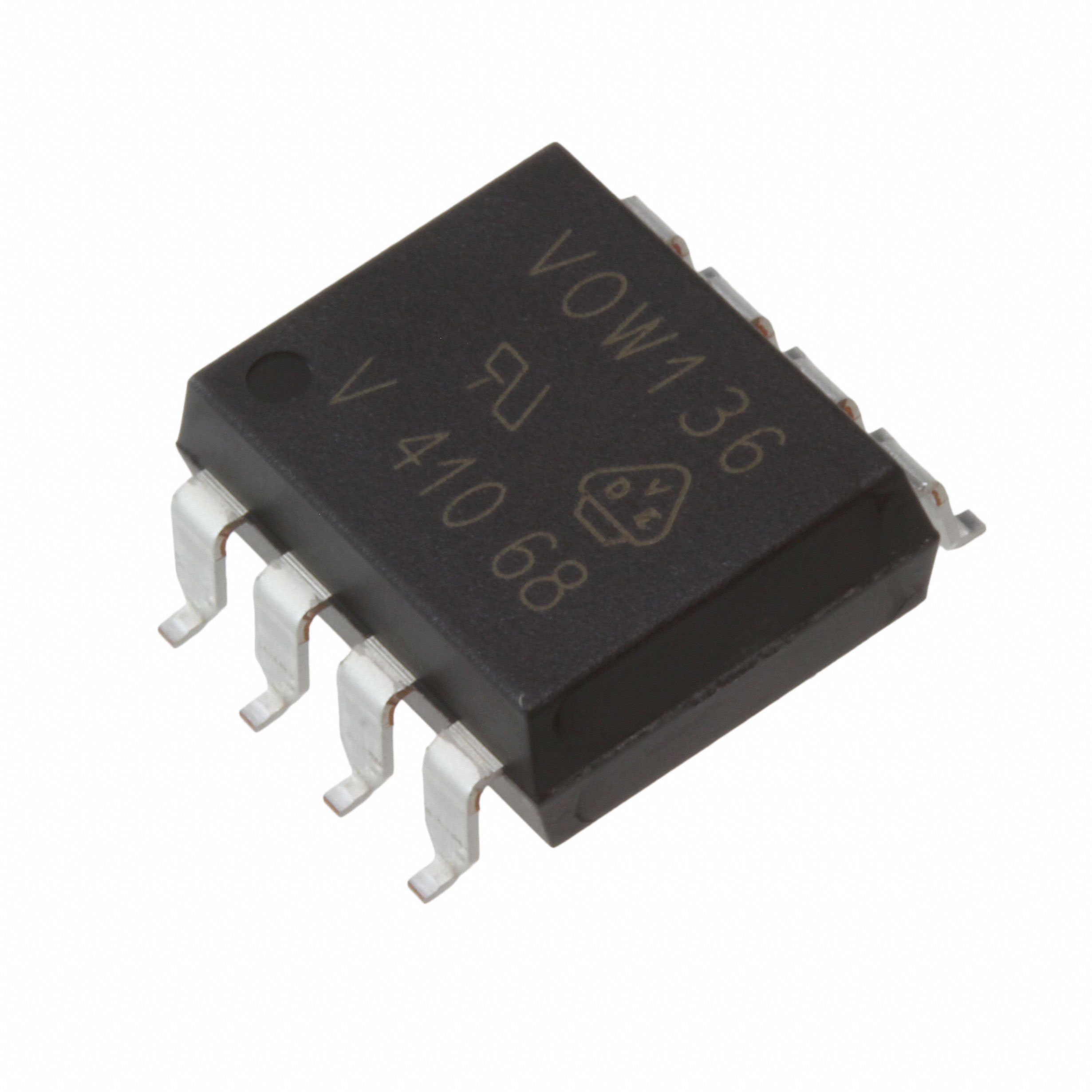

VOW136-X017T
OPTOISO 5.3KV TRANS W/BASE 8SMDManufacturer: Vishay Semiconductor Opto Division
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Optoisolator Transistor with Base Output 5300Vrms 1 Channel 8-SMD
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing |
| Output Type | Transistor with Base |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.38V |
| Input Type | DC |
| Current - Output / Channel | 8mA |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 19% @ 16mA |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 8-SMD |
| Voltage - Output (Max) | 25V |
| Turn On / Turn Off Time (Typ) | 200ns, 600ns |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 25 mA |
