VOA300
AUTOMOTIVE FAST RESPONSE LINEARManufacturer: Vishay Semiconductor Opto Division
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More

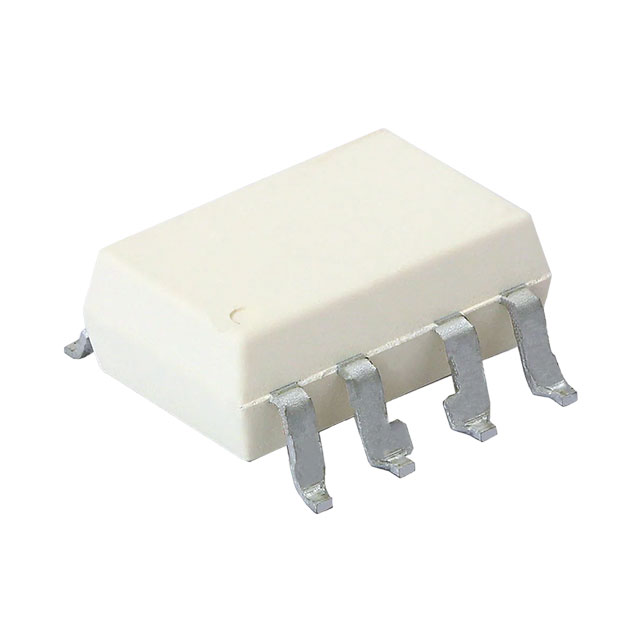

Vishay Semiconductor Opto Division VOA300 is a single-channel optoisolator featuring a linearized photovoltaic output. Designed for demanding automotive applications, this component offers exceptional isolation at 5300Vrms. Its 8-SMD gull wing package facilitates surface mounting, and it operates reliably across a wide temperature range of -40°C to 125°C. The VOA300 is qualified to AEC-Q102 standards, ensuring robust performance in automotive environments. Typical forward voltage is 1.4V with a maximum DC forward current of 60mA. Rise and fall times are rated at 800ns. This device is suitable for applications requiring fast response and precise signal coupling in automotive systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 43 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing |
| Output Type | Photovoltaic, Linearized |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Input Type | DC |
| Current - Output / Channel | - |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | - |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 8-SMD |
| Voltage - Output (Max) | - |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 800ns, 800ns |
| Grade | Automotive |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 60 mA |
| Qualification | AEC-Q102 |
