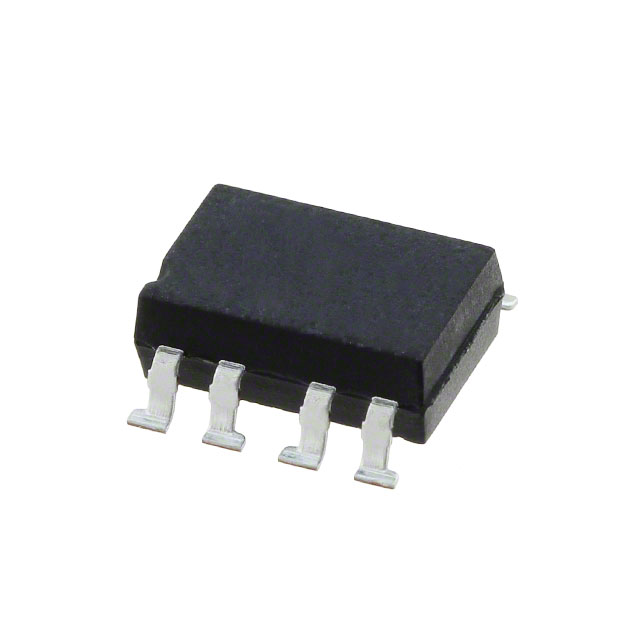

VO1263AACTR
OPTOISO 5.3KV 2CH PHVOLT 8SMDManufacturer: Vishay Semiconductor Opto Division
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
The Vishay Semiconductor Opto Division VO1263AACTR is a 2-channel photovoltaic output optoisolator with 5300Vrms isolation. This surface mount device, packaged in an 8-SMD Gull Wing configuration and supplied on tape and reel, offers a 16.5V maximum output voltage and a typical 1.3V forward voltage. Designed for DC input, it features a 50mA maximum DC forward current and delivers 3µA output current per channel. The component exhibits turn-on and turn-off times of 16µs and 472µs respectively. This optoisolator is suitable for applications in industrial automation, power supplies, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 54 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing |
| Output Type | Photovoltaic |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Input Type | DC |
| Current - Output / Channel | 3µA |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | - |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 8-SMD |
| Voltage - Output (Max) | 16.5V |
| Turn On / Turn Off Time (Typ) | 16µs, 472µs |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 2 |
| Current - DC Forward (If) (Max) | 50 mA |
