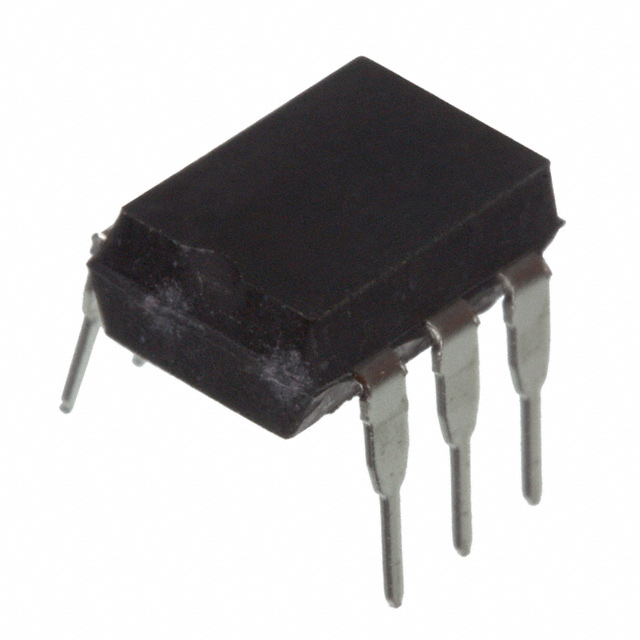

MCT5211-X007
OPTOISO 5.3KV TRANS W/BASE 6SMDManufacturer: Vishay Semiconductor Opto Division
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Vishay Semiconductor Opto Division MCT5211-X007 is a single-channel optoisolator featuring a transistor output with base connection. This device provides 5300Vrms isolation and is housed in a 6-SMD, Gull Wing package suitable for surface mounting. Key specifications include a minimum current transfer ratio of 150% at 1.6mA forward current and a maximum forward current of 40mA. The output transistor exhibits a Vce saturation of 400mV (max) and can handle up to 30V output voltage. Turn-on and turn-off times are rated at 20µs each. Operating temperature range is -55°C to 100°C. This component is frequently utilized in industrial automation, power control, and telecommunications equipment requiring robust galvanic isolation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SMD, Gull Wing |
| Output Type | Transistor with Base |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Input Type | DC |
| Current - Output / Channel | - |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 150% @ 1.6mA |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 6-SMD |
| Voltage - Output (Max) | 30V |
| Turn On / Turn Off Time (Typ) | 20µs, 20µs |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 40 mA |
