ILQ74
OPTOISO 5.3KV 4CH TRANS 16DIPManufacturer: Vishay Semiconductor Opto Division
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Optoisolator Transistor Output 5300Vrms 4 Channel 16-DIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Output Type | Transistor |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Input Type | DC |
| Current - Output / Channel | - |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 12.5% @ 16mA |
| Vce Saturation (Max) | 500mV |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 16-DIP |
| Voltage - Output (Max) | 20V |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 4 |
| Current - DC Forward (If) (Max) | 60 mA |
Request a Quote
Clients Also Buy

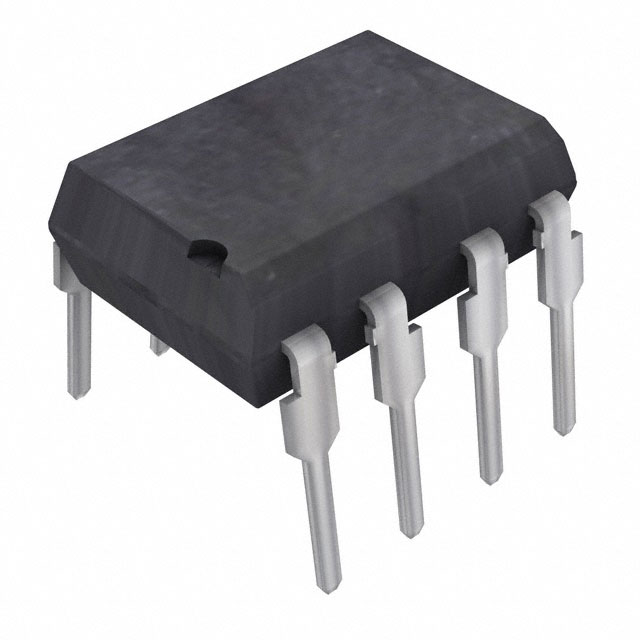

6N1136
