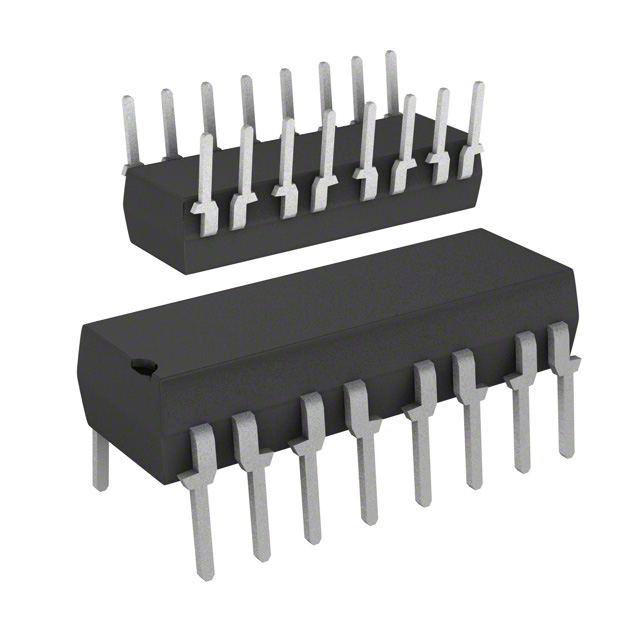

ILQ2-X016

OPTOISO 5.3KV 4CH TRANS 16DIP

Manufacturer: Vishay Semiconductor Opto Division

Categories: Transistor, Photovoltaic Output Optoisolators

Quality Control: Learn More

Vishay Semiconductor Opto Division ILQ2-X016 is a 4-channel optoisolator featuring transistor outputs. This component provides 5300Vrms of isolation and is housed in a 16-DIP package with through-hole mounting. The device offers a typical forward voltage (Vf) of 1.25V at a maximum DC forward current (If) of 60mA. Each channel supports an output current up to 50mA, with a wide current transfer ratio (CTR) ranging from 100% to 500% at 10mA input. Typical turn-on and turn-off times are 1.2µs and 2.3µs respectively, with rise and fall times of 2.6µs and 2.2µs. The maximum collector-emitter saturation voltage (Vce Sat) is 400mV, and the output voltage limit is 70V. Operating temperature range is -40°C to 100°C. This optoisolator is commonly utilized in industrial automation and power supply applications.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:
Technical Details:
PackagingTube
Package / Case16-DIP (0.400"", 10.16mm)
Output TypeTransistor
Mounting TypeThrough Hole
Operating Temperature-40°C ~ 100°C
Voltage - Forward (Vf) (Typ)1.25V
Input TypeDC
Current - Output / Channel50mA
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)100% @ 10mA
Vce Saturation (Max)400mV
Current Transfer Ratio (Max)500% @ 10mA
Supplier Device Package16-DIP
Voltage - Output (Max)70V
Turn On / Turn Off Time (Typ)1.2µs, 2.3µs
Rise / Fall Time (Typ)2.6µs, 2.2µs
Number of Channels4
Current - DC Forward (If) (Max)60 mA
