ILQ2-X009T

Banner
productimage

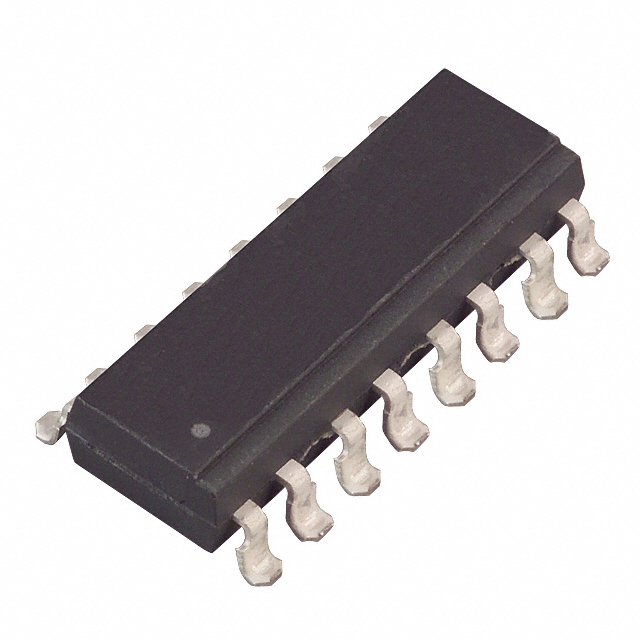

ILQ2-X009T

OPTOISO 5.3KV 4CH TRANS 16SMD

Manufacturer: Vishay Semiconductor Opto Division

Categories: Transistor, Photovoltaic Output Optoisolators

Quality Control: Learn More

Vishay Semiconductor Opto Division ILQ2-X009T is a 4-channel optoisolator featuring transistor outputs. This device provides 5300Vrms of isolation and offers a high current transfer ratio, reaching up to 500% at 10mA input current, with a minimum CTR of 100% at 10mA. The output current per channel is rated at 50mA, and the output voltage maximum is 70V. Forward voltage is typically 1.25V with a maximum forward current of 60mA. The device exhibits typical rise and fall times of 2.6µs and 2.2µs respectively, with turn-on and turn-off times of 1.2µs and 2.3µs. Vce saturation is a maximum of 400mV. The ILQ2-X009T is supplied in a 16-SMD, Gull Wing package, suitable for surface mounting and delivered on tape and reel. This component finds application in industrial automation, power supplies, and medical equipment.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / Case16-SMD, Gull Wing
Output TypeTransistor
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 100°C
Voltage - Forward (Vf) (Typ)1.25V
Input TypeDC
Current - Output / Channel50mA
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)100% @ 10mA
Vce Saturation (Max)400mV
Current Transfer Ratio (Max)500% @ 10mA
Supplier Device Package16-SMD
Voltage - Output (Max)70V
Turn On / Turn Off Time (Typ)1.2µs, 2.3µs
Rise / Fall Time (Typ)2.6µs, 2.2µs
Number of Channels4
Current - DC Forward (If) (Max)60 mA
