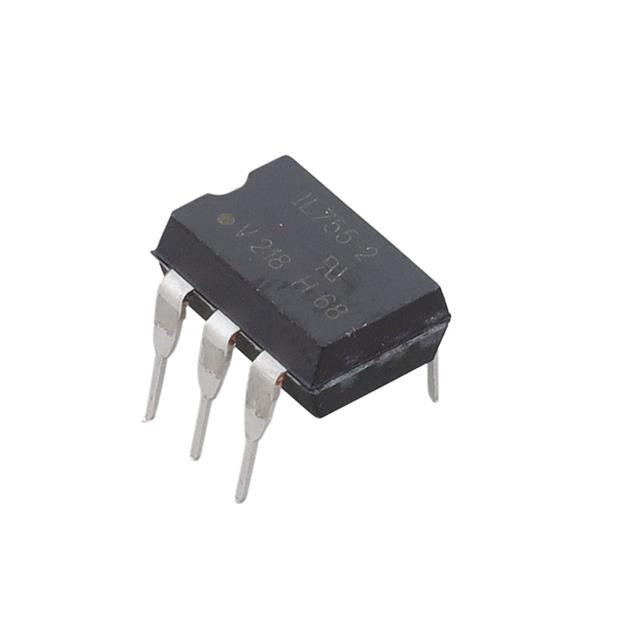

IL755-2

OPTOISO 5.3KV DARL W/BASE 6DIP

Manufacturer: Vishay Semiconductor Opto Division

Categories: Transistor, Photovoltaic Output Optoisolators

Quality Control: Learn More

Vishay Semiconductor Opto Division IL755-2 is a single-channel optocoupler featuring a Darlington output with base connection. This device provides 5300Vrms isolation and is housed in a 6-DIP package suitable for through-hole mounting. The IL755-2 boasts a high minimum current transfer ratio of 1000% at 1mA input. It supports both AC and DC input types, with a typical forward voltage of 1.2V and a maximum forward current of 60mA. The output can handle up to 60V with a maximum saturation voltage of 1V. This component is utilized in industrial automation, power supply control, and telecommunications equipment. The operating temperature range is -55°C to 100°C.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:
Technical Details:
PackagingTube
Package / Case6-DIP (0.300"", 7.62mm)
Output TypeDarlington with Base
Mounting TypeThrough Hole
Operating Temperature-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)1.2V
Input TypeAC, DC
Current - Output / Channel-
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)1000% @ 1mA
Vce Saturation (Max)1V
Current Transfer Ratio (Max)-
Supplier Device Package6-DIP
Voltage - Output (Max)60V
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)70µs, 70µs
Number of Channels1
Current - DC Forward (If) (Max)60 mA
