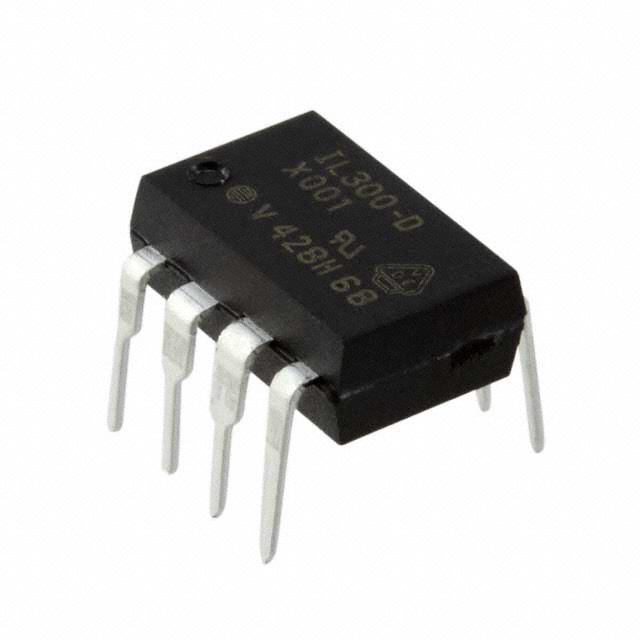

IL300-DEFG-X001
OPTOISO 5.3KV PHVOLT 8DIPManufacturer: Vishay Semiconductor Opto Division
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Vishay Semiconductor Opto Division IL300-DEFG-X001 is a single-channel optoisolator featuring a linearized photovoltaic output. This component provides 4420Vrms isolation and is housed in an 8-DIP package. It requires a maximum DC forward current of 60mA and exhibits a typical output current of 70µA per channel. The device operates across a temperature range of -55°C to 100°C. Key parameters include a typical forward voltage of 1.25V and a maximum output voltage of 500mV. The IL300-DEFG-X001 is suitable for applications requiring high voltage isolation and precise voltage level shifting, commonly found in industrial control systems and power supply monitoring.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Output Type | Photovoltaic, Linearized |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Input Type | DC |
| Current - Output / Channel | 70µA (Typ) |
| Voltage - Isolation | 4420Vrms |
| Current Transfer Ratio (Min) | - |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 8-DIP |
| Voltage - Output (Max) | 500mV |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 1µs, 1µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 60 mA |
