IL2

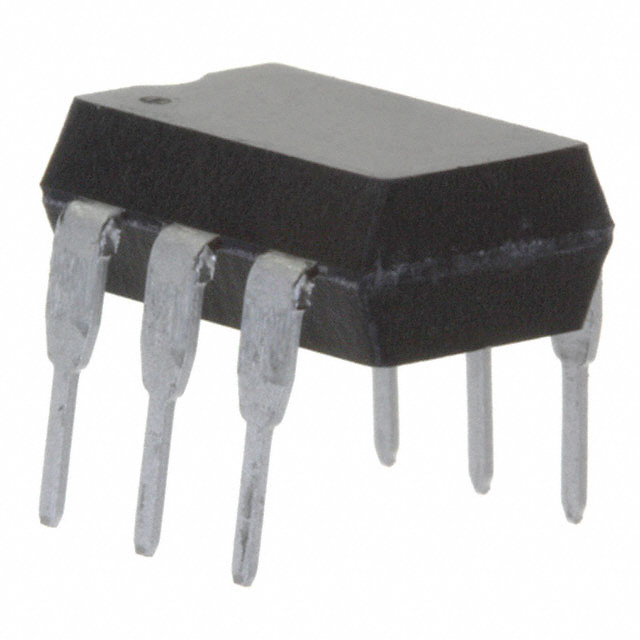

OPTOISO 5.3KV TRANS W/BASE 6DIPManufacturer: Vishay Semiconductor Opto Division
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Vishay Semiconductor Opto Division's IL2 is a single-channel optoisolator featuring a transistor with base output. This component offers robust isolation of 5300Vrms, making it suitable for demanding industrial applications. The device operates with a DC input and a maximum forward current of 60 mA, providing an output current capability of up to 50 mA per channel. Key performance characteristics include a minimum current transfer ratio of 100% at 10 mA, with a maximum achievable ratio of 500% at the same current. Typical turn-on and turn-off times are 1.2µs and 2.3µs respectively, with rise and fall times of 2.6µs and 2.2µs. The IL2 is housed in a 6-DIP package with a typical Vce saturation voltage of 250mV and a forward voltage of 1.25V. Operating temperatures range from -40°C to 100°C. This optoisolator is commonly employed in power control, industrial automation, and telecommunications systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-DIP (0.300"", 7.62mm) |
| Output Type | Transistor with Base |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Vce Saturation (Max) | 250mV (Typ) |
| Current Transfer Ratio (Max) | 500% @ 10mA |
| Supplier Device Package | 6-DIP |
| Voltage - Output (Max) | 70V |
| Turn On / Turn Off Time (Typ) | 1.2µs, 2.3µs |
| Rise / Fall Time (Typ) | 2.6µs, 2.2µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 60 mA |
