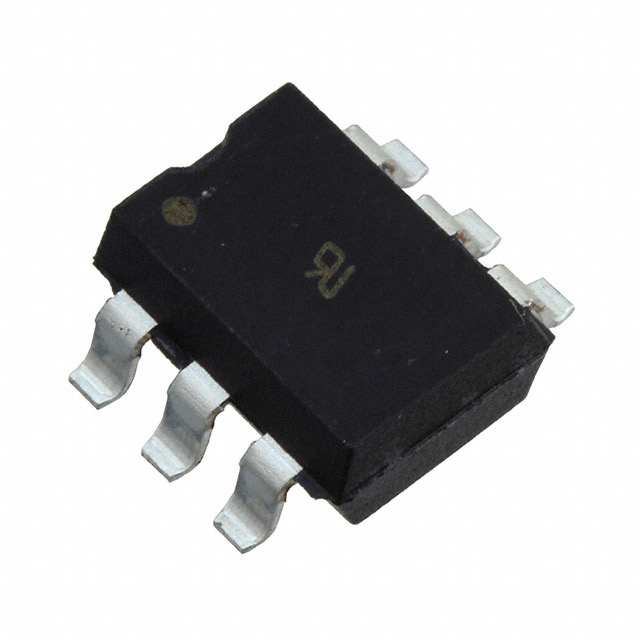

H11AA1-X009

OPTOISO 5.3KV TRANS W/BASE 6SMD

Manufacturer: Vishay Semiconductor Opto Division

Categories: Transistor, Photovoltaic Output Optoisolators

Quality Control: Learn More

Vishay Semiconductor Opto Division H11AA1-X009 is a single-channel optocoupler featuring a transistor with an internal base connection. This device provides 5300Vrms of isolation and is housed in a 6-SMD Gull Wing package for surface mounting. The input accepts AC or DC signals and requires a maximum forward current of 60mA. Minimum current transfer ratio is 20% at 10mA input. Output saturation voltage (Vce) is a maximum of 400mV. Operating temperature range is -55°C to 100°C. This component is suitable for applications in industrial control, power supplies, and telecommunications.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:
Technical Details:
PackagingTube
Package / Case6-SMD, Gull Wing
Output TypeTransistor with Base
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)1.2V
Input TypeAC, DC
Current - Output / Channel-
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)20% @ 10mA
Vce Saturation (Max)400mV
Current Transfer Ratio (Max)-
Supplier Device Package6-SMD
Voltage - Output (Max)30V
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)-
Number of Channels1
Current - DC Forward (If) (Max)60 mA
