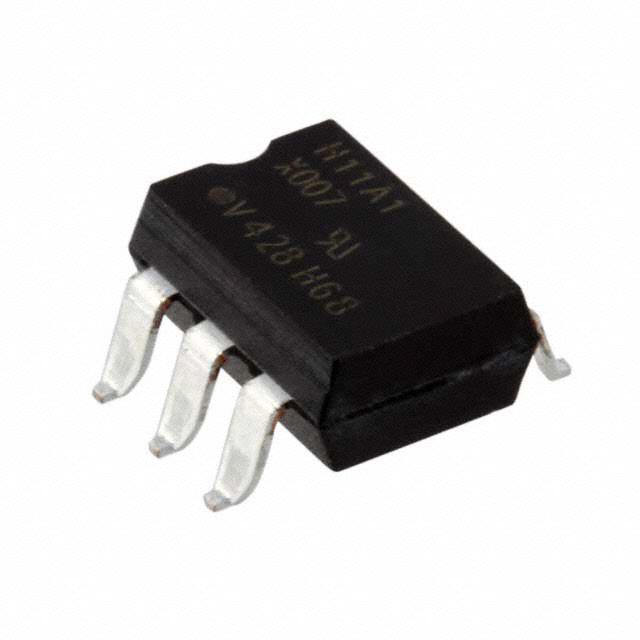

H11A1-X007
OPTOISO 5.3KV TRANS W/BASE 6SMDManufacturer: Vishay Semiconductor Opto Division
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Vishay Semiconductor Opto Division H11A1-X007 is a single-channel optoisolator featuring a transistor output with base connection. This device provides 5300Vrms isolation and is supplied in a 6-SMD Gull Wing package for surface mounting. The output transistor supports a maximum collector-emitter voltage of 70V and a saturation voltage of 400mV. It operates with a DC input, requiring a typical forward voltage of 1.1V and a maximum forward current of 60mA. The minimum current transfer ratio is 50% at 10mA, with an output current capability of 50mA per channel. Typical turn-on and turn-off times are 3µs. This component finds application in industrial automation, power supplies, and telecommunications equipment, operating within a temperature range of -55°C to 100°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SMD, Gull Wing |
| Output Type | Transistor with Base |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 50% @ 10mA |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 6-SMD |
| Voltage - Output (Max) | 70V |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 60 mA |
