VOR1121A6
SSR RELAY SPST-NO 200MA 0-250VManufacturer: Vishay Semiconductor Opto Division
Categories: Solid State Relays (SSR)
Quality Control: Learn More
The Vishay Semiconductor Opto Division VOR1121A6 is a Solid State Relay (SSR) featuring a SPST-NO (1 Form A) configuration. This series component is housed in a 6-DIP (0.300", 7.62mm) package, suitable for through-hole mounting. It offers a load current capability of 200 mA with an on-state resistance not exceeding 15 Ohms. The output is compatible with both AC and DC signals, operating across a load voltage range of 0 V to 250 V. The input voltage requirement is 1.36 VDC. This Vishay Semiconductor Opto Division component is qualified with cUL, DIN, and UL approvals and is commonly utilized in industrial automation, telecommunications, and medical equipment applications. The component is supplied in tube packaging.
Additional Information
Series: VOR1121RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-DIP (0.300"", 7.62mm) |
| Output Type | AC, DC |
| Mounting Type | Through Hole |
| Voltage - Input | 1.36VDC |
| Circuit | SPST-NO (1 Form A) |
| Operating Temperature | -40°C ~ 100°C |
| Termination Style | PC Pin |
| Load Current | 200 mA |
| Approval Agency | cUL, DIN, UL |
| Supplier Device Package | 6-DIP |
| Grade | - |
| Voltage - Load | 0 V ~ 250 V |
| On-State Resistance (Max) | 15 Ohms |
| Qualification | - |
Request a Quote
Clients Also Buy
VOR1121B6
SSR RELAY SPST-NO 200MA 0-250V

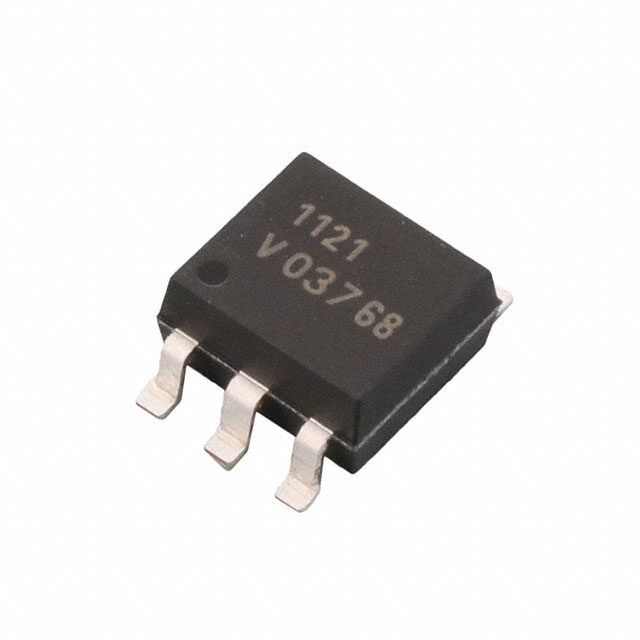

VOR1121B6T
