VO14642AT
SSR RELAY SPST-NO 1A 0-60VManufacturer: Vishay Semiconductor Opto Division
Categories: Solid State Relays (SSR)
Quality Control: Learn More

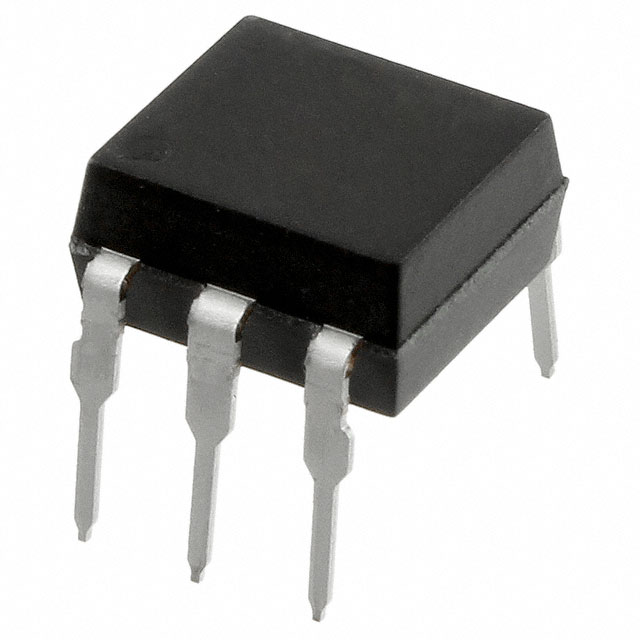

Vishay Semiconductor Opto Division VO14642AT is a solid-state relay featuring a single-pole, single-throw, normally open (SPST-NO) configuration. This device, packaged in a 6-DIP (0.300", 7.62mm) through-hole mount, is designed for applications requiring reliable switching of AC or DC loads up to 1A. The VO14642AT offers a low on-state resistance of 250 mOhms maximum and operates within a load voltage range of 0V to 60V. Its input voltage requirement is 1.3VDC. The component's operating temperature range is -55°C to 85°C. It holds approvals from cUL, DIN, FIMKO, and UL, indicating its suitability for various industrial and consumer electronics sectors. This Vishay Semiconductor Opto Division component is commonly utilized in telecommunications, industrial controls, and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-DIP (0.300"", 7.62mm) |
| Output Type | AC, DC |
| Mounting Type | Through Hole |
| Voltage - Input | 1.3VDC |
| Circuit | SPST-NO (1 Form A) |
| Operating Temperature | -55°C ~ 85°C |
| Termination Style | PC Pin |
| Load Current | 1 A |
| Approval Agency | cUL, DIN, FIMKO, UL |
| Supplier Device Package | 6-DIP |
| Grade | - |
| Voltage - Load | 0 V ~ 60 V |
| On-State Resistance (Max) | 250 mOhms |
| Qualification | - |
