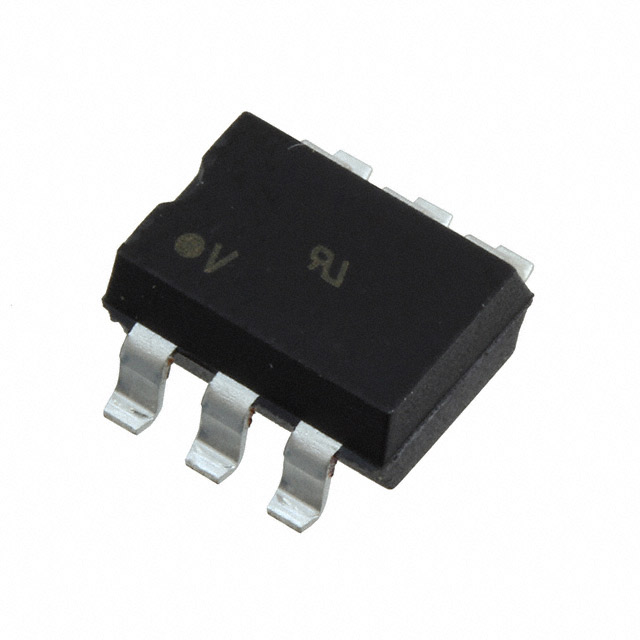

LH1540AAB
SSR RELAY SPST-NO 120MA 0-350VManufacturer: Vishay Semiconductor Opto Division
Categories: Solid State Relays (SSR)
Quality Control: Learn More
The Vishay Semiconductor Opto Division LH1540AAB is a Solid State Relay (SSR) featuring a single-pole, single-throw, normally open (SPST-NO) configuration. This component, from the LH1540 series, offers a load current capability of 120mA and operates across a voltage range of 0V to 350V. With an on-state resistance of 20 Ohms maximum, it is designed for surface mounting within a 6-SMD package. The input voltage requirement is 1.26VDC. This device supports both AC and DC output types and is suitable for operation in temperatures ranging from -40°C to 85°C. It holds certifications from cUL, DIN, FIMKO, and UL, indicating its suitability for various industrial and consumer electronics applications. The gull wing termination style facilitates robust surface mount assembly.
Additional Information
Series: LH1540RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SMD (0.300"", 7.62mm) |
| Output Type | AC, DC |
| Mounting Type | Surface Mount |
| Voltage - Input | 1.26VDC |
| Circuit | SPST-NO (1 Form A) |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Gull Wing |
| Load Current | 120 mA |
| Approval Agency | cUL, DIN, FIMKO, UL |
| Supplier Device Package | 6-SMD |
| Grade | - |
| Voltage - Load | 0 V ~ 350 V |
| On-State Resistance (Max) | 20 Ohms |
| Qualification | - |
Request a Quote
Clients Also Buy
LH1540AAB-X001
SSR RELAY SPST-NO 120MA 0-350V

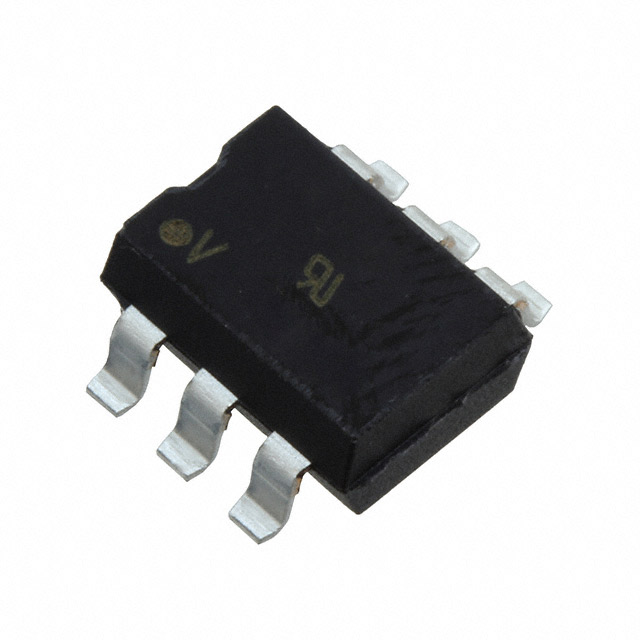

LH1540AABTR
