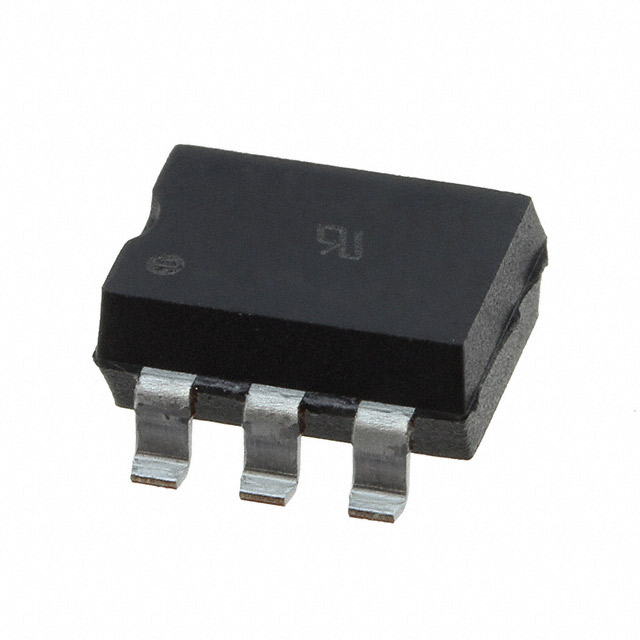

LH1525AABTR
SSR RELAY SPST-NO 250MA 0-400VManufacturer: Vishay Semiconductor Opto Division
Categories: Solid State Relays (SSR)
Quality Control: Learn More
Vishay Semiconductor Opto Division LH1525 Series Solid State Relay, part number LH1525AABTR. This SPST-NO (1 Form A) device features a 6-SMD (0.300", 7.62mm) package with gull wing termination. It supports AC/DC output with a maximum load current of 250 mA and a load voltage range of 0 V to 400 V. The on-state resistance is a maximum of 36 Ohms. Input voltage is 1.16 VDC. Operating temperature range is -40°C to 85°C. Approvals include cUL, FIMKO, UL, and VDE. This component is utilized in industrial automation, telecommunications, and medical equipment. Packaged in Tape & Reel (TR).
Additional Information
Series: LH1525RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD (0.300"", 7.62mm) |
| Output Type | AC, DC |
| Mounting Type | Surface Mount |
| Voltage - Input | 1.16VDC |
| Circuit | SPST-NO (1 Form A) |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Gull Wing |
| Load Current | 250 mA |
| Approval Agency | cUL, FIMKO, UL, VDE |
| Supplier Device Package | 6-SMD |
| Grade | - |
| Voltage - Load | 0 V ~ 400 V |
| On-State Resistance (Max) | 36 Ohms |
| Qualification | - |
