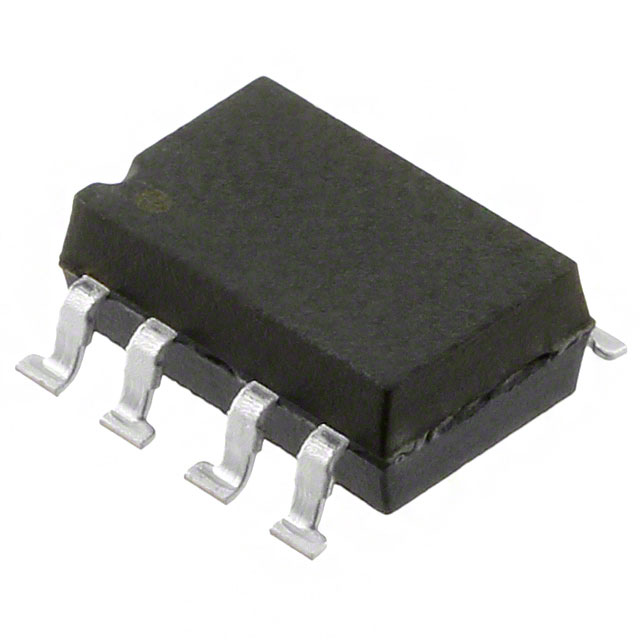

LH1522AACTR

SSR RELAY SPST-NO 120MA 0-200V

Manufacturer: Vishay Semiconductor Opto Division

Categories: Solid State Relays (SSR)

Quality Control: Learn More

The Vishay Semiconductor Opto Division LH1522AACTR is a Solid State Relay (SSR) featuring a dual SPST-NO (1 Form A) configuration within an 8-SMD (0.300", 7.62mm) package. Designed for surface mounting with gull wing termination, this component offers a load current capability of 120 mA and a load voltage range of 0 V to 200 V. The input voltage requirement is 1.26 VDC. With an on-state resistance not exceeding 10 Ohms, the LH1522 series relay operates across a temperature range of -40°C to 85°C. Approved by CSA, KIN, FIMKO, and UL, this Vishay SSR is suitable for applications in industrial automation, telecommunications, and medical equipment. The device is supplied on tape and reel.

Additional Information

Series: LH1522RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / Case8-SMD (0.300"", 7.62mm)
Output TypeAC, DC
Mounting TypeSurface Mount
Voltage - Input1.26VDC
CircuitSPST-NO (1 Form A) x 2
Operating Temperature-40°C ~ 85°C
Termination StyleGull Wing
Load Current120 mA
Approval AgencyCSA, KIN, FIMKO, UL
Supplier Device Package8-SMD
Grade-
Voltage - Load0 V ~ 200 V
On-State Resistance (Max)10 Ohms
Qualification-

Request a Quote

Name (required)

Phone (required)

Work Email (required)

Country (required)

Company Name (required)

CAPTCHA

Clients Also Buy
product image
LH1522AAC

SSR RELAY SPST-NO 120MA 0-200V

product image
LH1522AB

SSR RELAY SPST-NO 120MA 0-200V

product image

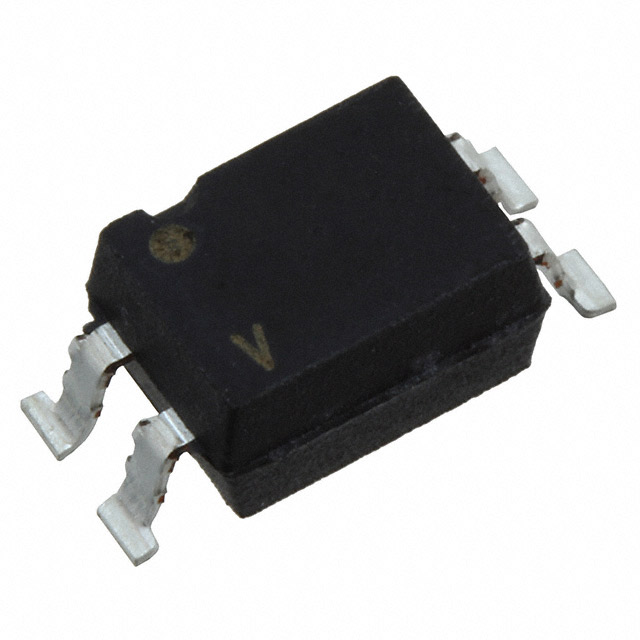

LH1546ADF
