LH1520AACTR
SSR RELAY SPST-NO 110MA 0-350VManufacturer: Vishay Semiconductor Opto Division
Categories: Solid State Relays (SSR)
Quality Control: Learn More
The Vishay Semiconductor Opto Division LH1520AACTR is a Solid State Relay featuring a single-pole, single-throw normally open (SPST-NO) configuration, repeated twice. This device is designed for surface mounting within an 8-SMD package, specifically measuring 0.300 inches (7.62mm). It supports both AC and DC output types with a maximum load current of 110 mA and an on-state resistance not exceeding 20 Ohms. The input voltage requirement is 1.26 VDC, and the load voltage rating spans from 0 V to 350 V. Operating within a temperature range of -40°C to 85°C, this component is suitable for applications in industrial automation, telecommunications, and medical equipment. The LH1520 series relay is supplied in Tape & Reel packaging and holds approvals from agencies including BSI, CQC, cUL, DIN, FIMKO, and UL. Termination is achieved via a gull wing style.
Additional Information
Series: LH1520RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD (0.300"", 7.62mm) |
| Output Type | AC, DC |
| Mounting Type | Surface Mount |
| Voltage - Input | 1.26VDC |
| Circuit | SPST-NO (1 Form A) x 2 |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Gull Wing |
| Load Current | 110 mA |
| Approval Agency | BSI, CQC, cUL, DIN, FIMKO, UL |
| Supplier Device Package | 8-SMD |
| Grade | - |
| Voltage - Load | 0 V ~ 350 V |
| On-State Resistance (Max) | 20 Ohms |
| Qualification | - |
Request a Quote
Clients Also Buy
LH1520AAC
SSR RELAY SPST-NO 110MA 0-350V

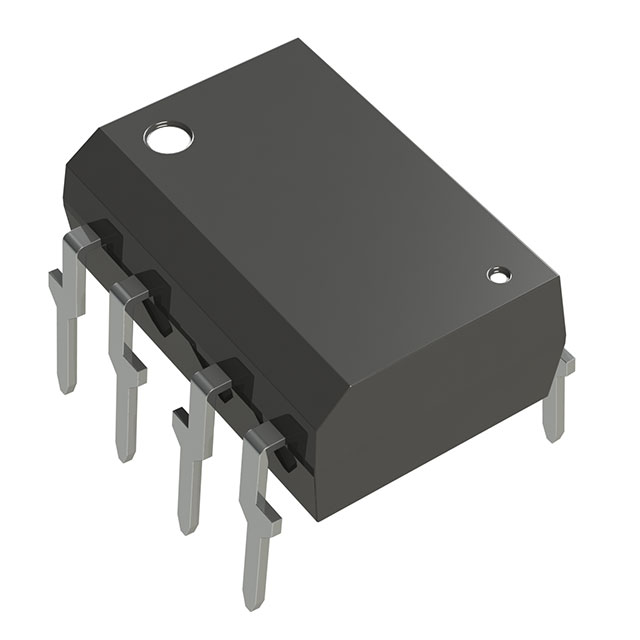

LH1520AB
