LH1510AAB
SSR RELAY SPST-NO 200MA 0-200VManufacturer: Vishay Semiconductor Opto Division
Categories: Solid State Relays (SSR)
Quality Control: Learn More
Vishay Semiconductor Opto Division's LH1510 series solid-state relay, part number LH1510AAB, features a single-pole, single-throw normally open (SPST-NO) configuration. This 6-SMD (0.300", 7.62mm) packaged device offers a load current capability of 200mA and operates over a load voltage range of 0V to 200V. The on-state resistance is specified at a maximum of 15 Ohms. Designed for AC or DC output, the LH1510AAB requires a 1.27VDC input voltage for activation. With UL, cUL, DIN, and FIMKO approvals, this relay is suitable for applications in industrial automation, telecommunications, and medical equipment. The operating temperature range is -40°C to 85°C.
Additional Information
Series: LH1510RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SMD (0.300"", 7.62mm) |
| Output Type | AC, DC |
| Mounting Type | - |
| Voltage - Input | 1.27VDC |
| Circuit | SPST-NO (1 Form A) |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Gull Wing |
| Load Current | 200 mA |
| Approval Agency | cUL, DIN, FIMKO, UL |
| Supplier Device Package | 6-SMD |
| Grade | - |
| Voltage - Load | 0 V ~ 200 V |
| On-State Resistance (Max) | 15 Ohms |
| Qualification | - |
Request a Quote
Clients Also Buy
LH1510AABTR
SSR RELAY SPST-NO 200MA 0-200V

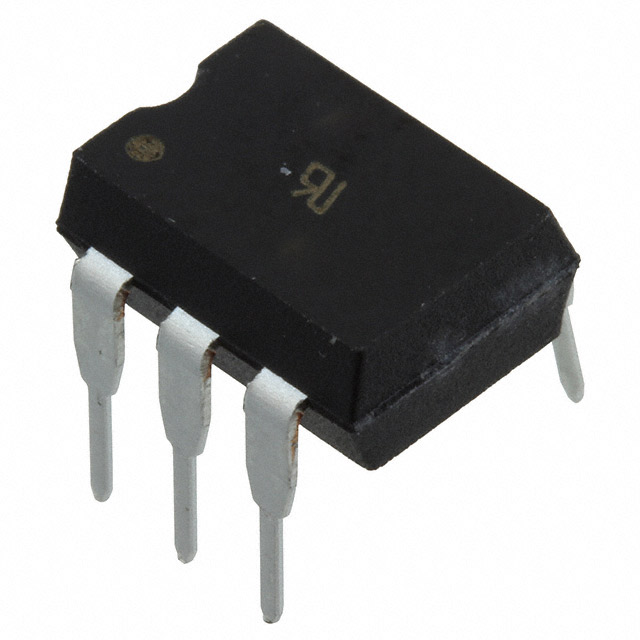

LH1510AT
