LH1505AACTR
SSR RELAY SPST-NO 120MA 0-250VManufacturer: Vishay Semiconductor Opto Division
Categories: Solid State Relays (SSR)
Quality Control: Learn More

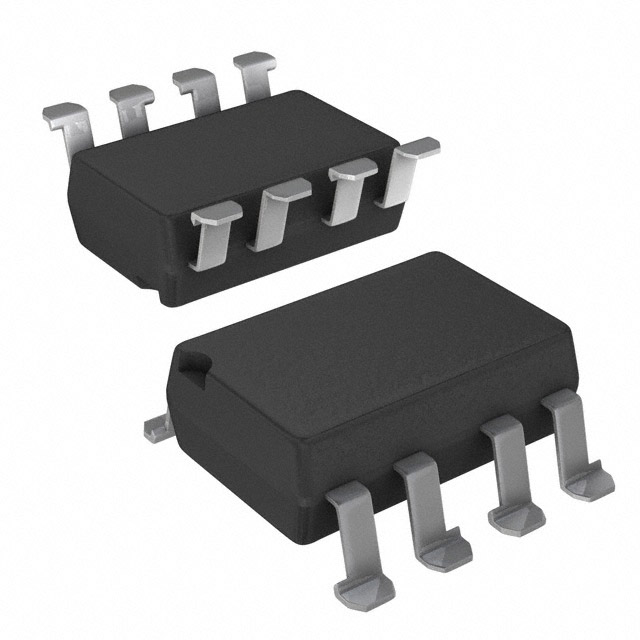

Vishay Semiconductor Opto Division LH1505 Series Solid State Relay, part number LH1505AACTR. This SPST-NO (1 Form A) x 2 configuration relay features a surface mount 8-SMD Gull Wing package, supplied on tape and reel. It offers a load current capability of 120 mA with an on-state resistance of up to 15 Ohms. The output is suitable for AC or DC loads with a voltage range of 0 V to 250 V. The input voltage requirement is 1.26 VDC. This component is utilized in industrial automation, telecommunications, and medical equipment applications, holding approvals from CQC, cUL, DIN, FIMKO, and UL. The operating temperature range is -40°C to 85°C.
Additional Information
Series: LH1505RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing |
| Output Type | AC, DC |
| Mounting Type | Surface Mount |
| Voltage - Input | 1.26VDC |
| Circuit | SPST-NO (1 Form A) x 2 |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Gull Wing |
| Load Current | 120 mA |
| Approval Agency | CQC, cUL, DIN, FIMKO, UL |
| Supplier Device Package | 8-SMD |
| Grade | - |
| Voltage - Load | 0 V ~ 250 V |
| On-State Resistance (Max) | 15 Ohms |
| Qualification | - |
