TSMP91100
SENSOR REMOTE REC 38.0KHZ 30MManufacturer: Vishay Semiconductor Opto Division
Categories: Remote Receiver
Quality Control: Learn More

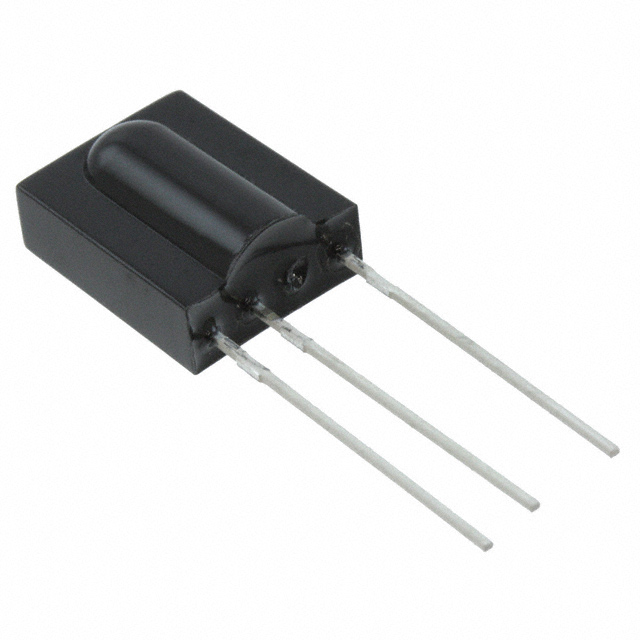

Vishay Semiconductor Opto Division TSMP91100 is a remote receiver sensor operating at a 38.0kHz center frequency. This through-hole component features a sensing distance of 10 meters and is designed for side-view orientation. The TSMP91100 requires a supply voltage ranging from 2.5V to 5.5V and draws a typical supply current of 700µA. It is packaged in a tube and operates within a temperature range of -25°C to 85°C. This Vishay Semiconductor Opto Division sensor is commonly utilized in consumer electronics and industrial automation applications requiring reliable infrared signal reception.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Sensing Distance | 10M |
| Mounting Type | Through Hole |
| Orientation | Side View |
| Operating Temperature | -25°C ~ 85°C |
| B.P.F. Center Frequency | 38.0kHz |
| Current - Supply | 700 µA |
| Voltage - Supply | 2.5 V ~ 5.5 V |
