VEMD2704
SENSOR PHOTODIODE 940NM 2SMDManufacturer: Vishay Semiconductor Opto Division
Categories: Photodiodes
Quality Control: Learn More

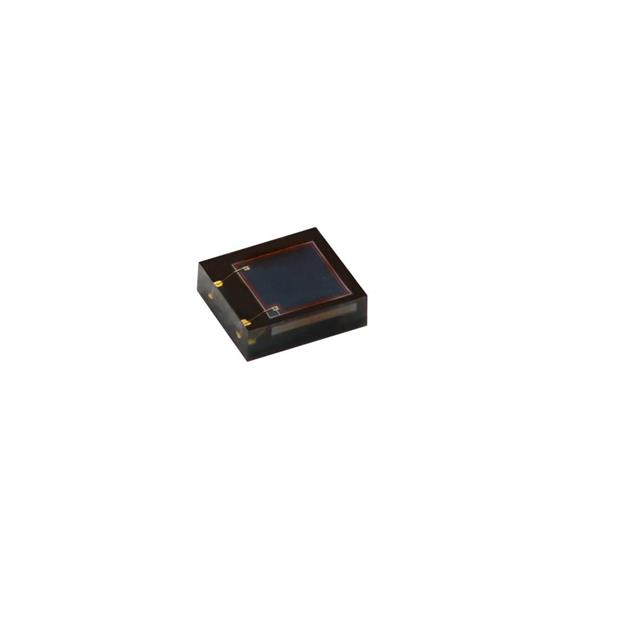

Vishay Semiconductor Opto Division VEMD2704 is a silicon PIN photodiode optimized for 940nm wavelength detection. This surface mount component, housed in a 2-SMD, No Lead package, features a fast response time of 70ns, enabling high-speed signal processing. The VEMD2704 exhibits a broad spectral range of 350nm to 1100nm and a wide viewing angle of 134°, suitable for diverse ambient light conditions. With a typical dark current of 30pA at a reverse voltage of 6V, it offers excellent sensitivity. The active area is 1.51mm². This device finds application in optical sensing, proximity detection, and automation systems. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Wavelength | 940nm |
| Mounting Type | Surface Mount |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 85°C |
| Response Time | 70ns |
| Viewing Angle | 134° |
| Spectral Range | 350nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 1.51mm² |
| Current - Dark (Typ) | 30pA |
| Voltage - DC Reverse (Vr) (Max) | 6 V |
