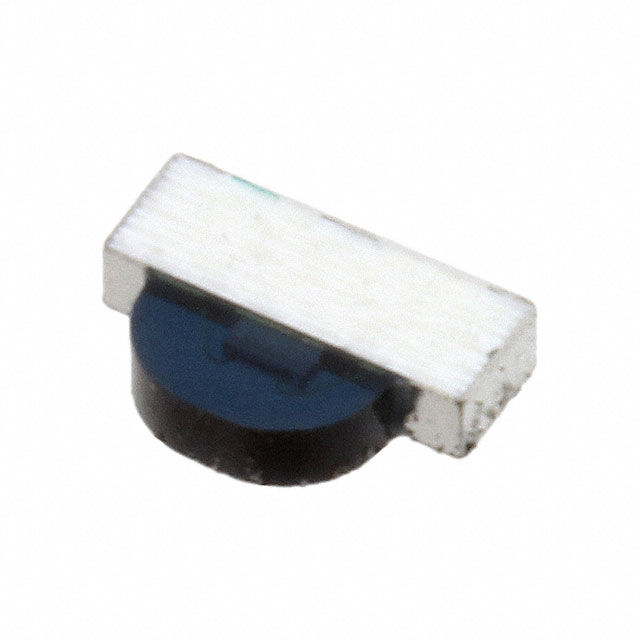

VEMD11940FX01
SENSOR PHOTODIODE 950NMManufacturer: Vishay Semiconductor Opto Division
Categories: Photodiodes
Quality Control: Learn More
Vishay Semiconductor Opto Division VEMD11940FX01 is a surface mount pin photodiode optimized for the 950nm wavelength. This AEC-Q101 qualified component features a 1µs response time and a wide 150° viewing angle, making it suitable for demanding automotive applications. The VEMD11940FX01 exhibits a typical dark current of 1nA and a reverse voltage rating of 60V. Its spectral range spans from 780nm to 1050nm, with an active area of 0.053mm². The component operates within a temperature range of -40°C to 100°C and is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | - |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 100°C |
| Response Time | 1µs |
| Viewing Angle | 150° |
| Spectral Range | 780nm ~ 1050nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 0.053mm² |
| Current - Dark (Typ) | 1nA |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Qualification | AEC-Q101 |
