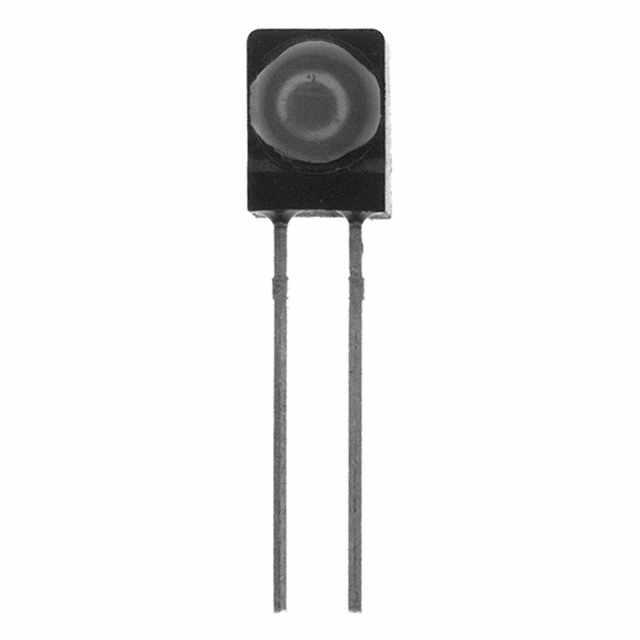

TESP5700
SENSOR PHOTODIODE 870NM RADIALManufacturer: Vishay Semiconductor Opto Division
Categories: Photodiodes
Quality Control: Learn More
Vishay Semiconductor Opto Division TESP5700 is a PIN photodiode designed for demanding optical sensing applications. This radial, side-view component features a spectral range of 790nm to 980nm with peak sensitivity at 950nm, offering a responsivity of 0.37 A/W. The TESP5700 boasts a fast response time of 10ns and a wide viewing angle of 120°, making it suitable for systems requiring precise and rapid light detection. With a reverse voltage rating of up to 60V and a low dark current of 1nA, this photodiode operates efficiently across a temperature range of -40°C to 100°C. Its active area of 2.2mm² and through-hole mounting facilitate integration into various electronic assemblies. This component finds application in industries such as industrial automation, medical instrumentation, and security systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Side View |
| Wavelength | 870nm |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 100°C |
| Response Time | 10ns |
| Viewing Angle | 120° |
| Spectral Range | 790nm ~ 980nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.37 A/W @ 950nm |
| Active Area | 2.2mm² |
| Current - Dark (Typ) | 1nA |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
