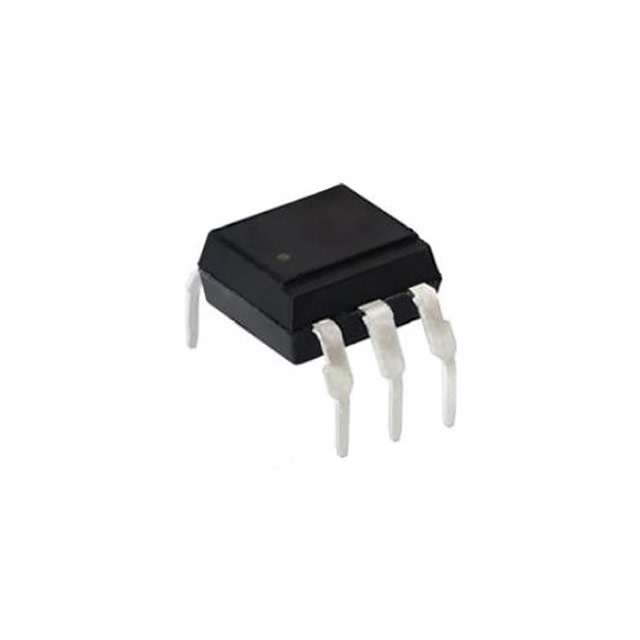

VOH1016AG-V
OPTOISO 5KV OPEN COLLECTOR 6-DIPManufacturer: Vishay Semiconductor Opto Division
Categories: Logic Output Optoisolators
Quality Control: Learn More
Logic Output Optoisolator 2MHz Open Collector 5000Vrms 1 Channel 10kV/µs CMTI 6-DIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-DIP (0.400"", 10.16mm) |
| Output Type | Open Collector |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Supply | 16V |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Data Rate | 2MHz |
| Input Type | DC |
| Voltage - Isolation | 5000Vrms |
| Current - DC Forward (If) (Max) | 50mA |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 6-DIP |
| Rise / Fall Time (Typ) | 50ns, 40ns |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 2µs, 1.2µs |
| Number of Channels | 1 |
| Current - Output / Channel | 50 mA |
