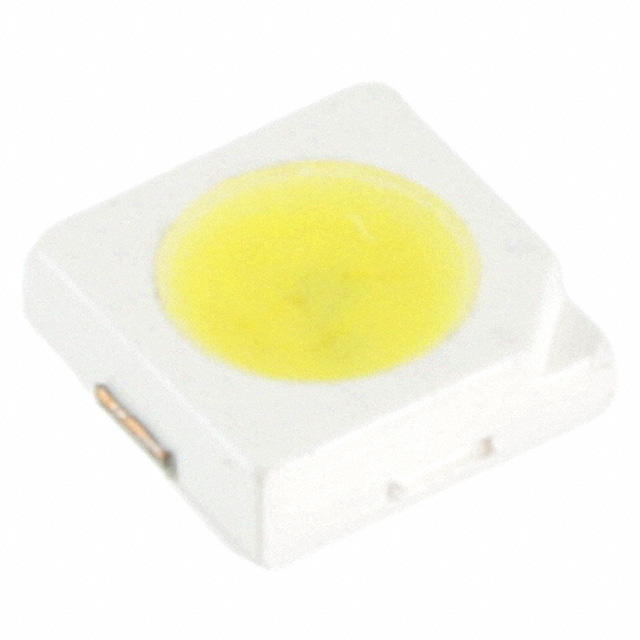

VLMW51P2Q3-GS08
LED MINI PWR WHITE 2PLCC 2SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED White Lighting
Quality Control: Learn More
Vishay Semiconductor Opto Division VLMW51P2Q3-GS08 is a white LED designed for high-brightness illumination applications. This surface-mount component, housed in a 1414 (3535 Metric) 2-PLCC package, operates with a typical forward voltage of 3.4V and a maximum forward current of 180mA, with a rated test current of 150mA. At this test current, it delivers a luminous flux of 32 lumens with a broad 120° viewing angle. The device offers a luminous efficacy of 63 lm/W. Its compact dimensions of 0.138 inches by 0.138 inches (3.50mm x 3.50mm) and a seated height of 0.055 inches (1.40mm) make it suitable for space-constrained designs. This LED is commonly utilized in automotive lighting, general illumination, and display backlighting. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White |
| Size / Dimension | 0.138"" L x 0.138"" W (3.50mm x 3.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 180mA |
| Supplier Device Package | 2-PLCC |
| Lumens/Watt @ Current - Test | 63 lm/W |
| Height - Seated (Max) | 0.055"" (1.40mm) |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 32lm (24lm ~ 40lm) |
| Flux @ 85°C, Current - Test | - |
