VLRK31Q2R1-GS18
LED RED CLEAR SMD BOTTOM ENTManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

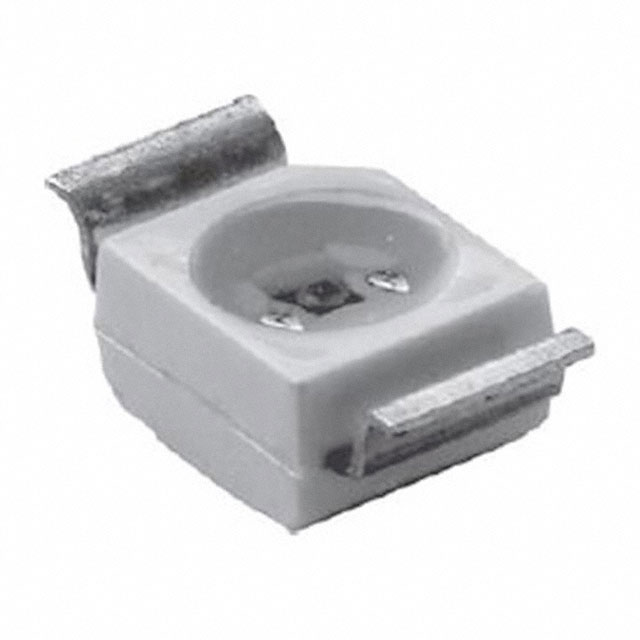

Vishay Semiconductor Opto Division VLRK31Q2R1-GS18 is a red, clear lens, surface-mount LED designed for indication applications. This discrete component features a 2.1V forward voltage and a dominant wavelength of 630nm, with a peak wavelength of 643nm. It delivers a typical luminous intensity of 115mcd at 20mA. The LED is housed in a 2-SMD, Z-Bend package, measuring 3.20mm x 2.80mm with a lens diameter of 2.40mm, and has a wide viewing angle of 120°. This component is suitable for use in automotive and industrial automation sectors. The VLRK31Q2R1-GS18 is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 115mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 643nm |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
