VLMR32ABBB-GS08
LED RED 4PLCC SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

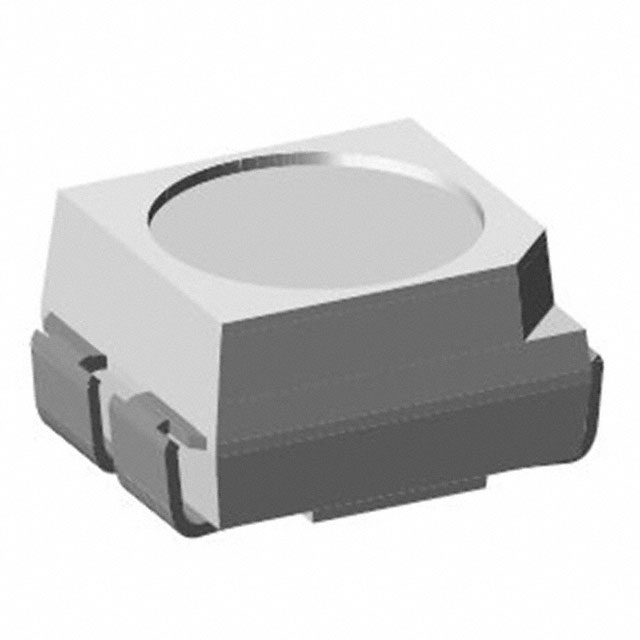

Vishay Semiconductor Opto Division VLM.32 series red LED, part number VLMR32ABBB-GS08. This 4-PLCC surface mount device features a dominant wavelength of 625nm and a typical forward voltage of 2.2V. It is rated for 2100mcd luminous intensity at a test current of 50mA, with a wide 120° viewing angle. The LED measures 3.20mm x 2.80mm with a maximum height of 2.10mm, housing a 2.40mm diameter lens. Qualified to AEC-Q101 standards and supplied in cut tape packaging, this component is designed for automotive applications, providing reliable visual indication.
Additional Information
Series: VLM.32RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | 4-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 50mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 625nm |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | - |
| Grade | Automotive |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Qualification | AEC-Q101 |
