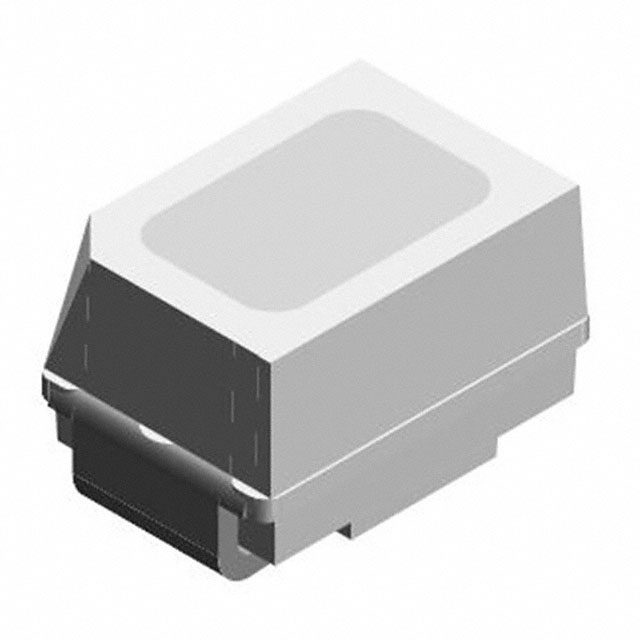

VLME2302-GS08
LED YELLOW CLEAR SMD MINILED SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More
Vishay Semiconductor Opto Division MiniLED VLME2302-GS08 is a yellow discrete LED designed for indication applications. This surface mount component, packaged in a 2-SMD, J-Lead configuration, emits light with a dominant wavelength of 588nm and a peak wavelength of 590nm. It features a clear, rectangle lens with a flat top, measuring 1.50mm x 0.90mm, and offers a typical forward voltage of 2V at a test current of 10mA, achieving a millicandela rating of 42mcd. The VLME2302-GS08 provides a wide viewing angle of 120° and is supplied in Tape & Reel packaging. This component is suitable for use in automotive and industrial lighting systems.
Additional Information
Series: MiniLEDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Yellow |
| Size / Dimension | 2.20mm L x 1.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 42mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 1.40mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | 588nm |
| Supplier Device Package | SMD MiniLED |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 0.90mm |
