VLMD31L2N1-GS18
LED RED CLEAR 2PLCC SMDManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

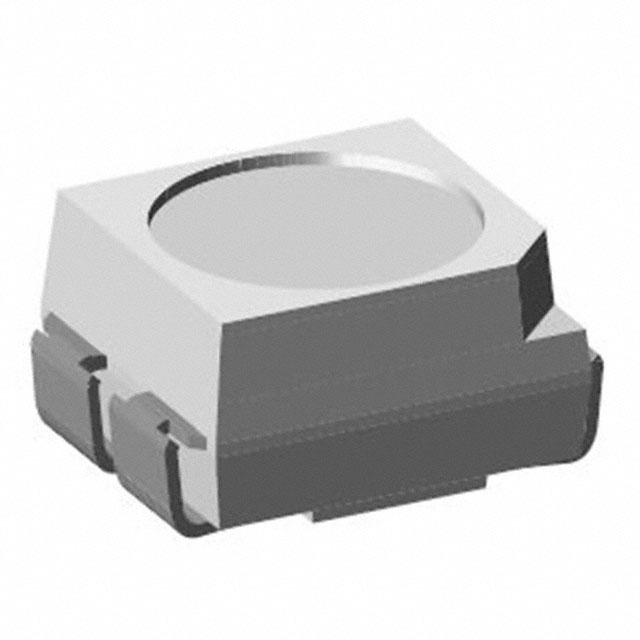

Vishay Semiconductor Opto Division's VLM.3 series, part number VLMD31L2N1-GS18, is a red, clear lens, 648nm dominant wavelength LED designed for surface mount applications. This 2-PLCC package component features a 1.8V typical forward voltage and a 10mA test current, delivering 25mcd luminous intensity. Its 2.40mm diameter round lens with a flat top and 120° viewing angle are suitable for various indication applications across automotive, industrial, and consumer electronics sectors. The 3.00mm L x 2.80mm W footprint and 1.85mm maximum height ensure compatibility with dense PCB designs. This component is supplied in Tape & Reel packaging.
Additional Information
Series: VLM.3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Red |
| Size / Dimension | 3.00mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 25mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 1.85mm |
| Wavelength - Peak | 650nm |
| Wavelength - Dominant | 648nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
