TLWR9900
LED RED CLEAR 4DIP THROUGH HOLEManufacturer: Vishay Semiconductor Opto Division
Categories: LED Indication - Discrete
Quality Control: Learn More

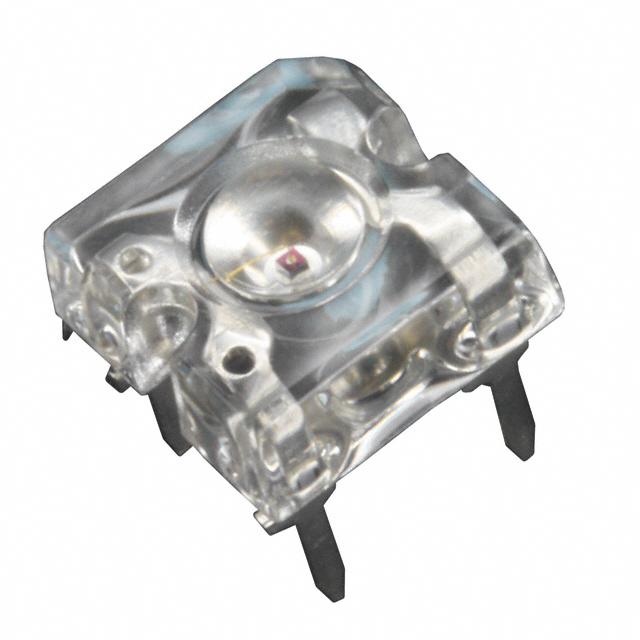

Vishay Semiconductor Opto Division's TLWR9900, part of the TELUX™ series, is a red, clear lens, through-hole mounted LED. This discrete indicator features a dominant wavelength of 615nm and a peak wavelength of 624nm, with a typical forward voltage (Vf) of 2.2V. The LED is housed in a 4-DIP (0.200", 5.08mm) package and offers a wide 90° viewing angle. It is designed for applications requiring reliable visual indication, commonly found in industrial automation, consumer electronics, and medical equipment. The component is supplied in tubes for efficient handling and integration into automated assembly processes.
Additional Information
Series: TELUX™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Red |
| Size / Dimension | 7.62mm L x 7.62mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 70mA |
| Viewing Angle | 90° |
| Height (Max) | 6.40mm |
| Wavelength - Peak | 624nm |
| Wavelength - Dominant | 615nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | - |
